General Information | |
| Extended Product Type: | SLIM EKIP COM MODBUSRS-485 XT2-4 INT F/P |
| Product ID: | 1SDA105175R1 |
| EAN: | 8056221027748 |
| Catalog Description: | SLIM EKIP COM MODBUSRS-485 XT2-4 INT F/P |

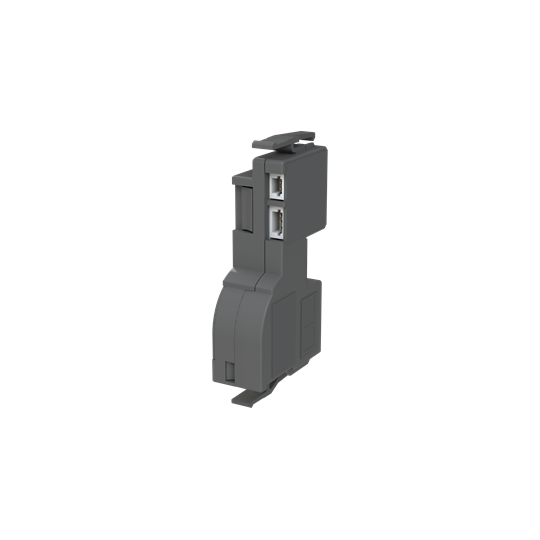

| Long Description: | SLIM EKIP COM COMMUNICATION MODULE MODBUS RS-485 FOR FIXED/PLUG-IN CIRCUIT BREAKER XT2-XT4 INTERNALLY INSTALLED |
| |
| EAN: | 8056221027748 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| |
| Product Net Width: | 150 mm |
| Product Net Height: | 30 mm |
| Product Net Depth / Length: | 200 mm |
| Product Net Weight: | 0.2 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 150 mm |
| Package Level 1 Height: | 30 mm |
| Package Level 1 Depth / Length: | 200 mm |
| Package Level 1 Gross Weight: | 0.3 kg |
| Package Level 1 EAN: | 8056221027748 |
| |
| Ambient Air Temperature: | Operation -40 ... 125 °C |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| Configuration Type: | Loose or Configurable |
| Order Multiple: | 1 piece |
| Product Main Type: | Accessories for Tmax XT |
| Product Name: | Accessory |
| Product Type: | ACC |
| Standards: | IEC |
| UL | |
| Suitable For: | XT2, XT4 |
| Suitable for Product Class: | SACE Tmax XT |
| |
| Data Sheet, Technical Information: | 1SDC210100D0206 |
| 1SDC210200D0206 | |
| Instructions and Manuals: | 1SDH002009A1511 |
| 1SDH002009A1513 | |
| REACH Declaration: | LB-DT 18-21D |
| RoHS Information: | LB-DT 17-21D |
| |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
