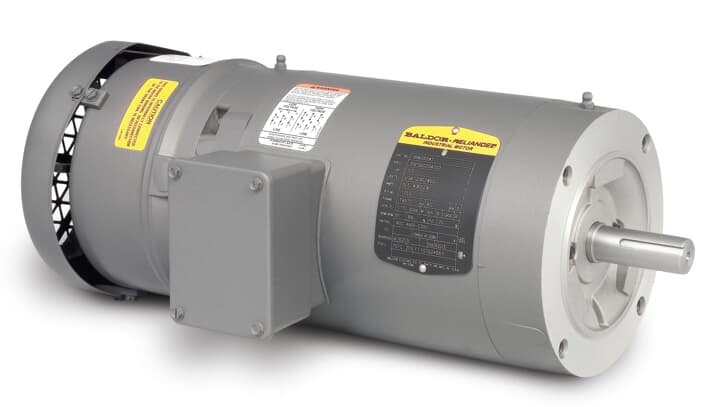

Article: VBM3615T
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Global Commercial Alias: | VBM3615T |
| Product ID: | 7BVBM3615T |
| ABB Type Designation: | 5HP,1745RPM,3PH,60HZ,184TC,BRAKE,36 |
| Catalog Description: | 5HP,1745RPM,3PH,60HZ,184TC,BRAKE,3634M |
| |
| ABB Type Designation: | 5HP,1745RPM,3PH,60HZ,184TC,BRAKE,36 |
| Country of Origin: | United States (US) |
| Customs Tariff Number: | 85015220 |
| Design: | A |
| Enclosure Type: | TEFC |
| Frame Material: | Steel |
| Frequency (f): | 60 Hz |
| Global Commercial Alias: | VBM3615T |
| Gross Volume: | 6996 in³ |
| Gross Weight: | 40.406 kg |
| Horsepower Rating UL/CSA: | 5.000 Hp |
| Invoice Description: | 5HP,1745RPM,3PH,60HZ,184TC,BRAKE,3634M |
| Made To Order: | No |
| Minimum Order Quantity: | 1 piece |
| Motor Base Type: | No Mounting |
| Motor Frame Size: | 184TC |
| Number of Phases: | 3 |
| Number of Poles: | 4 |
| Number of Speeds: | Single Speed |
| Order Multiple: | 1 piece |
| Power Factor: | 78 % |
| Product Name: | Definite Purpose |
| Product Net Height: | 40.64 cm |
| Product Net Length: | 67.31 cm |
| Product Net Weight: | 40.406 kg |
| Product Net Width: | 41.91 cm |
| Product Type: | Undefined |
| Quote Only: | No |
| Rated Current (In): | 14.2 ... 13.6 A |
| 6.8 A | |
| Rated Efficiency: | 87.5 % |
| Rated Speed: | 1,745 r/min |
| Selling Unit of Measure: | piece |
| Service Factor Percentage: | 1.15 % |
| Stocked At (Warehouses): | Menden, Germany |
| Alabama, United States | |
| Voltage Rating: | 460 V |
| 230 V | |
| 208 V |
