Article: UD/S4.210.1
Article: UD/S4.210.1

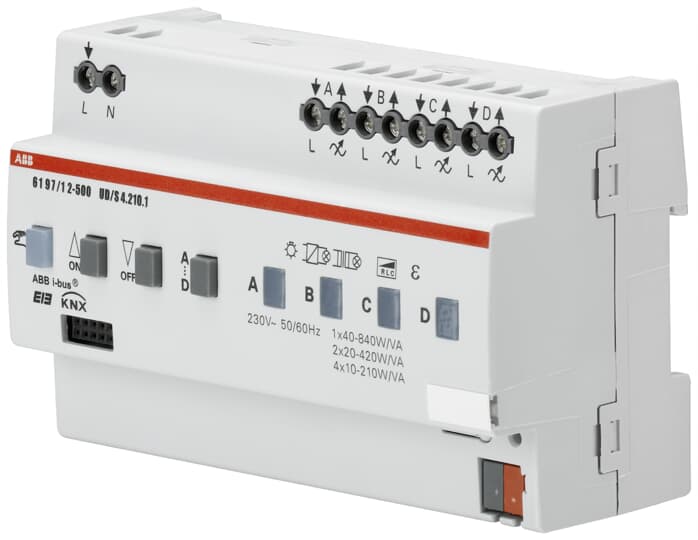

UD/S4.210.1 Universal Dim Actuator, 4-fold, 210 VA, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | UD/S4.210.1 |
| Product ID: | 2CDG006197R0025 |
| EAN: | 4011395119082 |
| Catalog Description: | UD/S4.210.1 Universal Dim Actuator, 4-fold, 210 VA, MDRC |
| Long Description: | UD/S4.210.1 Universal Dim Actuator, 4-fold, 210 VA, MDRC |
| |
| Product Name: | Lighting Control |
| Rated Operational Voltage: | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC: | 230 V AC |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-Rail |
| Color: | Light grey |
| |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 108 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 65 mm |
| Product Net Weight: | 0.355 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Height: | 89 mm |
| Package Level 1 Depth / Length: | 179 mm |
| Package Level 1 Gross Weight: | 0.419 kg |
| Package Level 1 EAN: | 4011395119082 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Instructions and Manuals: | 9AKK2017-108872 |
| Popular Downloads | |
| Instructions and Manuals: | 9AKK2017-108872 |
| |
| ETIM 6: | EC001094 - Dimming actuator for bus system |
| ETIM 7: | EC001094 - Dimming actuator for bus system |
| ETIM 8: | EC001094 - Dimming actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143123 |
