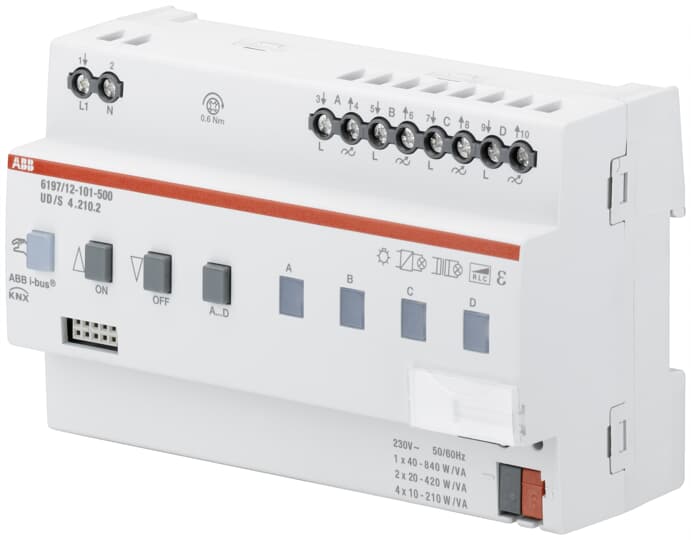

UD/S4.210.2 Universal Dim Actuator, 4-fold, 210 VA, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | UD/S4.210.2 |
| Product ID: | 2CDG006197R0036 |
| Catalog Description: | UD/S4.210.2 Universal Dim Actuator, 4-fold, 210 VA, MDRC |
| Long Description: | UD/S4.210.2 Universal Dim Actuator, 4-fold, 210 VA, MDRC |
| |
| Product Name: | Lighting Control |
| Rated Operational Voltage: | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC: | 230 V AC |
| Rated Frequency (f): | 50 / 60 Hz |
| Power Loss: | 9 W |
| Number of Outputs: | 4 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-Rail |
| Manual Operation: | Yes |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 8 |
| Product Net Width: | 144 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.355 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Height: | 90 mm |
| Package Level 1 Depth / Length: | 175 mm |
| Package Level 1 Gross Weight: | 0.47 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| Replacement Product ID (NEW): | 2CKA006197A0036 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK2017-108851 |
| Instructions and Manuals: | 9AKK2017-108871 |
| Popular Downloads | |
| Instructions and Manuals: | 9AKK2017-108871 |
| |
| ETIM 6: | EC001094 - Dimming actuator for bus system |
| ETIM 7: | EC001094 - Dimming actuator for bus system |
| ETIM 8: | EC001094 - Dimming actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143123 |
| Object Classification Code: | A |
