General Information
Global Commercial Alias:	VM7010A
Product ID:	7BVM7010A
ABB Type Designation:	.75HP,1725RPM,3PH,60HZ,56C,X3420M,X
Catalog Description:	.75HP,1725RPM,3PH,60HZ,56C,X3420M,XPFC
Additional Information
ABB Type Designation:	.75HP,1725RPM,3PH,60HZ,56C,X3420M,X
Ambient Temperature:	40 °C
Brake Present:	No
Brand / Label:	Baldor-Reliance
Catalog Number:	VM7010A
Certification Agency:	CSA
UL
UR
Country of Origin:	United States (US)
Customs Tariff Number:	85015100
Design:	B
Dimension Diagram:	34LY5336
ETIM 7:	EC001851 - Electric motor
Efficiency Level:	Not Regulated / Exempt
Undefined Efficiency

Electrical Data:

Current	Freq	Power	Speed	Voltage
3.2 A	60 Hz	.75 Hp	1725 r/min	208 V
3 A	60 Hz	.75 Hp	1725 r/min	230 V
1.5 A	60 Hz	.75 Hp	1725 r/min	460 V

Enclosure Type: XPFC
Explosion Proof Group Class: CLI GP D

CLII GP F,G
Explosion Protection: Explosion-proof
Frame Material: Steel
Frequency (f): 60 Hz
Global Commercial Alias: VM7010A
Gross Volume: 2205.33 in³
Gross Weight: 14.982 kg
Horsepower Rating UL/CSA: 0.750 Hp
IDEA Granular Category Code (IGCC): 1325 >> General purpose motor AC
Invoice Description: .75HP,1725RPM,3PH,60HZ,56C,X3420M,XPFC
Made To Order: No
Minimum Order Quantity: 1 piece
Motor Base Type: No Mounting
Motor Frame Size: 56C
NEMA Design Code: B
Number of Phases: 3
Number of Poles: 4
Number of Speeds: Single Speed
Order Multiple: 1 piece
Power Factor: 58 %

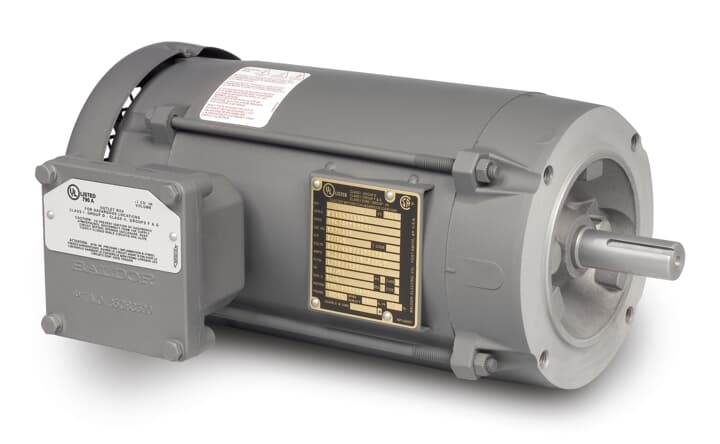

Product Name: LV Explosion Proof Motors
Product Net Height: 28.893 cm
Product Net Length: 41.91 cm
Product Net Weight: 14.982 kg
Product Net Width: 29.845 cm
Product Type: Undefined
Quote Only: No
Rated Current (I_n): 3.2 ... 3 A

1.5 A
Rated Efficiency: 73.0 %
Rated Speed: 1,725 r/min
RoHS Information: RoHS Compliant
Selling Unit of Measure: piece
Service Factor Percentage: 1.00 %
Shaft Diameter: 0.625 in
Standards: NEMA
Starting of Motor: Direct On Line
Stocked At (Warehouses): China

Alabama, United States

Alaska, United States
Temperature Class: T3C
UNSPSC: 26101112
Voltage Rating: 460 V

230 V

208 V
