Article: 263RS6W
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 263RS6W |
| Product ID: | 2CMA167306R1000 |
| EAN: | 7392696673068 |

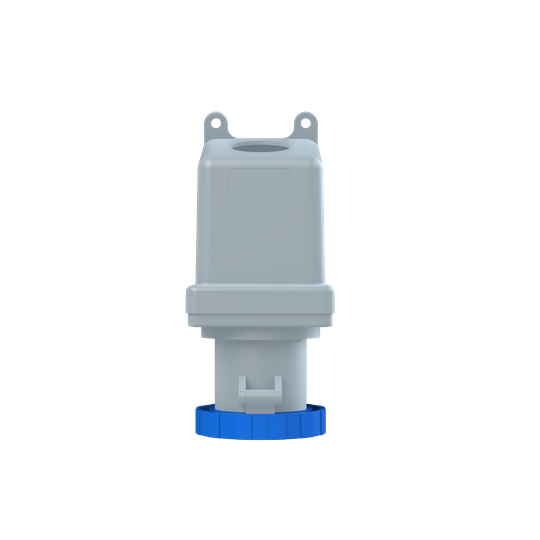

| Catalog Description: | 263RS6W Wall mounted socket |
| Long Description: | Surface socket-outlet, earthing sleeve position 6h, rated current 63A, IP67 watertight, 2-poles+earth, frequency 50-60 Hz, color code Blue |
| |
| E-Number (Sweden): | E2416570 |
| E-Number (Finland): | 2421221 |
| E-Number (Norway): | 2416570 |
| EAN: | 7392696673068 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 118 mm |
| Product Net Height: | 263 mm |
| Product Net Weight: | 1 kg |
| Mechanical Drawings: | 9AKK107991A3820 |
| |
| Package Level 1 Width: | 152 mm |
| Package Level 1 Depth / Length: | 120 mm |
| Package Level 1 Height: | 265 mm |
| Package Level 1 Gross Weight: | 1.11 kg |
| Package Level 1 EAN: | 7392696673068 |
| Package Level 1 Units: | box 1 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 158.75 kg |
| Package Level 2 EAN: | 7392696072847 |
| Package Level 2 Units: | pallet (lift) 125 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 2P+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 6 ... 25 mm² |
| Color: | Blue |
| Connection Type: | Screw |
| Degree of Protection: | IP67 |
| IP69 | |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Surface socket outlet |
| Housing Material: | Thermoplastic (PBT) |
| Invoice Description: | Ind. P&S#263RS6W |
| Mounting Holes: | 176x76 |
| Number of Poles: | 3 |
| Order Multiple: | 1 piece |
| Product Main Type: | TRS |
| Product Name: | Wall mounted socket |
| Protection Type: | Watertight |
| Rated Current (In): | 63 A |
| Rated Voltage (Ur): | 200 ... 250 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 60309-1, -2 |
| Suitable For: | Surface Socket Outlets |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC000038M0001 |
| Installation Manual: | 2CMC000038M0001 |
| RAL Number: | RAL 7012 - Basalt Grey |
| |
| eClass: | 27440510 |
| UNSPSC: | 39120000 |
| |
| Wire Size: | 8 ... 4 AWG |
| Tightening Torque: | WireClamp3.5 N·m |
