Article: 2095UC-212
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 2095UC-212 |
| Product ID: | 2TKA000649G1 |
| EAN: | 6410070602907 |

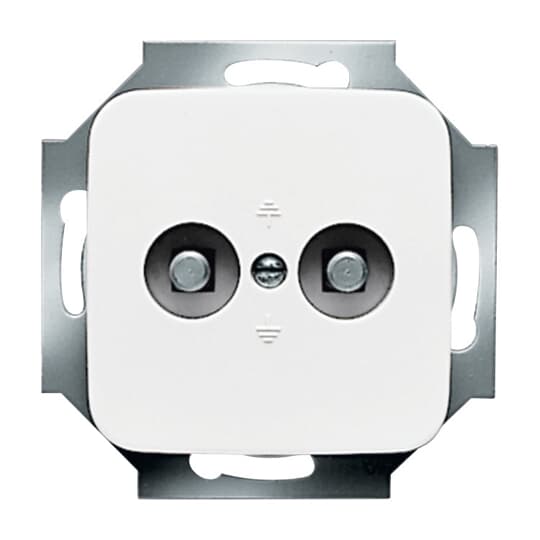

| Catalog Description: | 2095UC-212 Equipot. outlet |
| Long Description: | Equipotential socket outlet for internal cabling up to 1 x 6 mm² or 4 x 2.5 mm². Screw terminals. |
| |
| Product Name: | Equipot. outlet |
| Mounting Type: | Flush mounted (plaster) |
| Surface Finishing: | Surface protection: Untreated |
| Surface finishing: Matt | |
| Material: | Plastic |
| Model Number: | Socket outlet 2-position |
| RAL Number: | RAL 9010 - Pure White |
| Color: | White |
| Number of Batteries: | 0 |
| |
| Product Net Width: | 0.071 m |
| Product Net Height: | 0.036 m |
| Product Net Depth / Length: | 0.071 m |
| Product Net Weight: | 0.0689 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.15 m |
| Package Level 1 Height: | 0.036 m |
| Package Level 1 Depth / Length: | 0.255 m |
| Package Level 1 Gross Weight: | 0.784 kg |
| Package Level 1 EAN: | 6410070602907 |
| Package Level 2 Units: | crate 100 piece |
| Package Level 2 Width: | 0.27 m |
| Package Level 2 Height: | 0.34 m |
| Package Level 2 Depth / Length: | 0.385 m |
| Package Level 2 Gross Weight: | 8.28 kg |
| Package Level 3 Units: | 1800 piece |
| Package Level 3 Width: | 1.2 m |
| Package Level 3 Height: | 1.1 m |
| Package Level 3 Depth / Length: | 0.8 m |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85366930 |
| E-Number (Finland): | 7060290 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CKA100000E3366 |
| Instructions and Manuals: | 9AKK107492A9688 |
| RoHS Information: | 9AKK106713A4634 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107492A9688 |
| Instructions and Manuals: | 9AKK107492A9688 |
| |
| ETIM 6: | EC000090 - Potential equalization socket outlet |
| ETIM 7: | EC000090 - Potential equalization socket outlet |
| ETIM 8: | EC000090 - Potential equalization socket outlet |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85366930 |
