General Information | |
| Extended Product Type: | 216Schuko |
| Product ID: | 2CMA170196R1000 |
| EAN: | 7392696702614 |

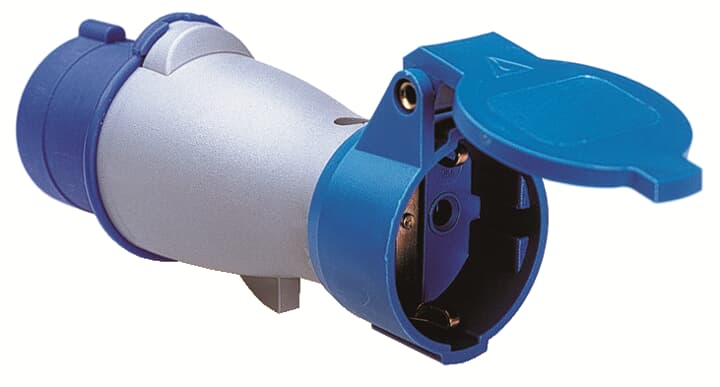

| Catalog Description: | Adaptor, 10/16A, IP44, 2P+E |
| Long Description: | Adaptor, 10/16A, IP44 splashproof, 2-poles+earth |
| |
| E-Number (Sweden): | E2417445 |
| E-Number (Finland): | 2421392 |
| E-Number (Norway): | 1565590 |
| EAN: | 7392696702614 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 10 piece |
| |
| Product Net Width: | 138 mm |
| Product Net Height: | 53 mm |
| Product Net Weight: | 0.25 kg |
| |
| Package Level 1 Width: | 138 mm |
| Package Level 1 Depth / Length: | 158 mm |
| Package Level 1 Height: | 345 mm |
| Package Level 1 Gross Weight: | 2.5 kg |
| Package Level 1 EAN: | 7392696702614 |
| Package Level 1 Units: | box 10 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| SEMKO Certificate: | 1600240 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 2P+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Length: | 0 m |
| Color: | Blue |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP44 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Adaptor 10/16 A IEC to Schuko |
| Housing Material: | Thermoplastic (PBT) |
| Invoice Description: | Ind. P&S#216Schuko |
| Number of Poles: | 3 |
| Number of Schuko Outlets: | 1 |
| Order Multiple: | 10 piece |
| Product Main Type: | Adaptor |
| Product Name: | Industrial Adaptor |
| Rated Current (In): | 16 A |
| Rated Voltage (Ur): | 200 ... 250 V |
| Standards: | IEC 60309-1, -2 |
| Suitable For: | 216Schuko |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440501 |
| UNSPSC: | 39121406 |
