Article: 216MVS6XW
Article: 216MVS6XW

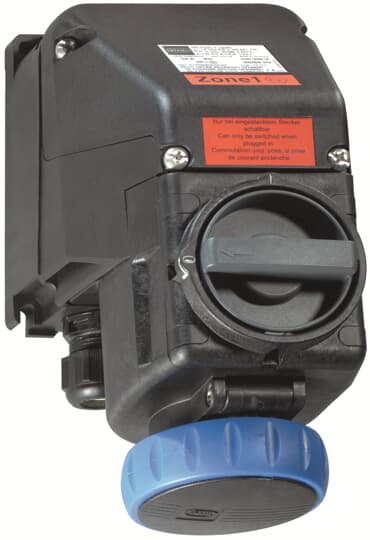

Explosion proof Switched interlocked outlets, 2P+E, 16 A, 200 … 250 V
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 216MVS6XW |
| Product ID: | 2CMA101687R1000 |
| EAN: | 7392696016872 |
| Catalog Description: | Explosion proof Switched interlocked outlets, 2P+E, 16 A, 200 … 250 V |
| Long Description: | Mechanical interlocked socket 16 A, IP 66, 2P+E, 200-250V, 50 and 60Hz, Gas explosion protection: II 2 G Ex de IIC T6 Gb, Dust explosion protection: II 2 D Ex tD A21 80ºC Db, 2xM25 entries down, 1xM25 screw connection, 1xM25 stopping plug, Cable entry polyamide black, Switch handle can be locked in 0 and I position, IP66 |
| |
| EAN: | 7392696016872 |
| Country of Origin: | Germany (DE) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 168 mm |
| Product Net Height: | 105 mm |
| Product Net Weight: | 1.120 kg |
| |
| Package Level 1 Width: | 138 mm |
| Package Level 1 Depth / Length: | 158 mm |
| Package Level 1 Height: | 345 mm |
| Package Level 1 Gross Weight: | 1.12 kg |
| Package Level 1 EAN: | 7392696016872 |
| Package Level 1 Units: | box 1 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0028 |
| Environmental Information: | 2CMC000057M0000 |
| |
| Additional Information: | 2P+E |
| Ambient Temperature: | -30 ... 55 °C |
| Cable Diameter: | 7 ... 17 mm |
| Cable Entry Position: | Down |
| Color: | Blue |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP66 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Explosion proof Switched interlocked outlet |
| Housing Material: | Glass-fibre reinforced polyester |
| Invoice Description: | Ind. P&S#216MVS6XW |
| Mounting Type: | Vertical |
| Number of Poles: | 3 |
| Order Multiple: | 1 piece |
| Product Main Type: | CMVSX |
| Product Name: | Industrial Mechanical interlocked socket |
| Protection Type: | Explosion proof |
| Rated Current (In): | 16 A |
| Rated Voltage (Ur): | 200 ... 250 V |
| Standards: | IEC 60309-1 |
| IEC 60309-2 | |
| IEC 60529 | |
| IEC 60947-3 | |
| Instructions and Manuals: | 2CMC700014L0201 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440511 |
| UNSPSC: | 39120000 |
