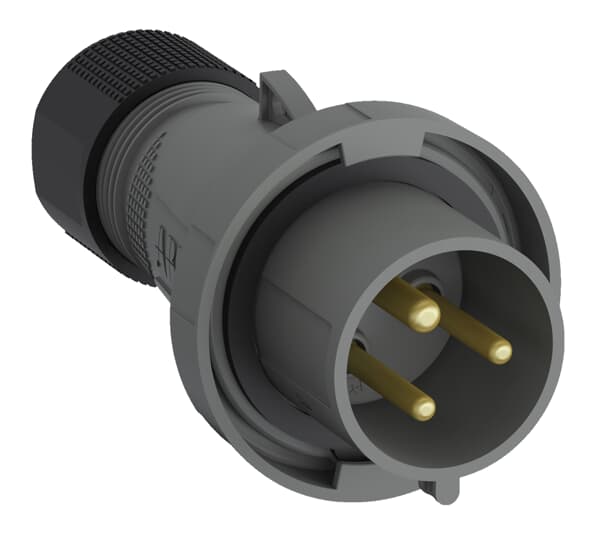

Article: 232EP1W
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 232EP1W |
| Product ID: | 2CMA101093R1000 |
| EAN: | 7392696010931 |
| Catalog Description: | Industrial Plugs, 2P+E, 32A, Optional voltage V |
| Long Description: | Industrial Plugs, 2P+E, 32A, Optional voltage V Clock Position Of Grounding Contact 1 hour Color code Grey |
| |
| EAN: | 7392696010931 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 10 piece |
| |
| Product Net Width: | 91 mm |
| Product Net Height: | 91 mm |
| Product Net Weight: | 0.23 kg |
| |
| Package Level 1 Width: | 390 mm |
| Package Level 1 Depth / Length: | 175 mm |
| Package Level 1 Height: | 195 mm |
| Package Level 1 Gross Weight: | 2.3 kg |
| Package Level 1 EAN: | 7392696017435 |
| Package Level 1 Units: | box 10 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | 2CHC660165X0201 |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| SEMKO Certificate: | 1620516 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 2P+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 2.5 ... 6 mm² |
| Cable Diameter: | 22 mm |
| Cable Entry Position: | Swivel |
| Color: | Grey |
| Connection Type: | Screw |
| Degree of Protection: | IP67 |
| Frequency (f): | AC Hz |
| Function: | Plug |
| Housing Material: | Plastic (PA) |
| Invoice Description: | Ind. P&S#232EP1W |
| Number of Poles: | 3 |
| Order Multiple: | 10 piece |
| Product Main Type: | EP |
| Product Name: | Industrial Plug |
| Protection Type: | Watertight |
| Rated Current (In): | 32 A |
| Rated Voltage (Ur): | Optional voltage V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 60309-1, -2 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7012 - Basalt Grey |
| |
| eClass: | 27440509 |
| UNSPSC: | 39120000 |
| |
| Wire Size: | 12 ... 10 AWG |
| Tightening Torque: | WireClamp1.2 N·m |
