General Information | |
| Extended Product Type: | 216P6XW |
| Product ID: | 2CMA101692R1000 |
| EAN: | 7392696016926 |

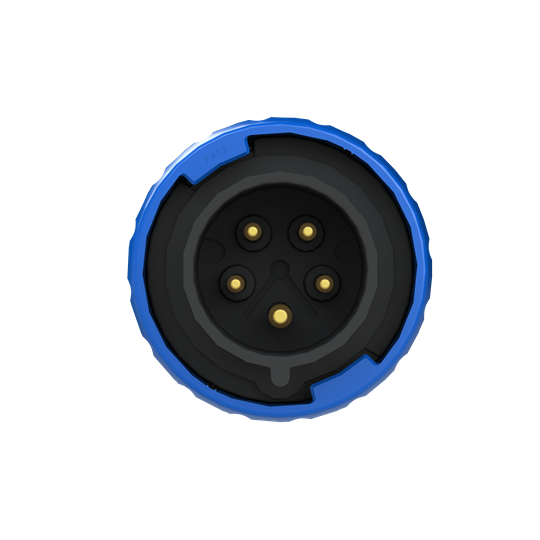

| Catalog Description: | Explosion Proof Plugs, 2P+E, 16 A, 200 … 250 V |
| Long Description: | Plug 16 A, IP 66, 2P+E, 200-250 V, 50 and 60Hz, Gas explosion protection: II 2 G Ex de IIC T6 Gb, Dust explosion protection: II 2 Ex tD A21 80ºC Db |
| |
| EAN: | 7392696016926 |
| Country of Origin: | Germany (DE) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 76 mm |
| Product Net Height: | 76 mm |
| Product Net Weight: | 0.420 kg |
| |
| Package Level 1 Width: | 95 mm |
| Package Level 1 Depth / Length: | 95 mm |
| Package Level 1 Height: | 189 mm |
| Package Level 1 Gross Weight: | 0.42 kg |
| Package Level 1 EAN: | 7392696016926 |
| Package Level 1 Units: | box 1 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0028 |
| Environmental Information: | 2CMC000073M0000 |
| |
| Additional Information: | 2P+E |
| Ambient Temperature: | -40 ... 55 °C |
| Cable Diameter: | 8 ... 20 mm |
| Cable Entry Position: | Straight |
| Color: | Blue |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP66 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Explosion Proof Plug |
| Housing Material: | Glass-fibre reinforced polyester |
| Input Voltage (Uin): | 400 V |
| Invoice Description: | Ind. P&S#216P6XW |
| Number of Poles: | 3 |
| Order Multiple: | 1 piece |
| Product Main Type: | CPX |
| Product Name: | ATEX |
| Protection Type: | Explosion proof |
| Rated Current (In): | 16 A |
| Rated Voltage (Ur): | 200 ... 250 V |
| Standards: | IEC 60309-1 |
| IEC 60309-2 | |
| Instructions and Manuals: | 2CMC700014L0201 |
| RAL Number: | RAL 9005 - Jet Black |
| |
| eClass: | 27440512 |
| UNSPSC: | 39120000 |
