Article: 216R4
Article: 216R4

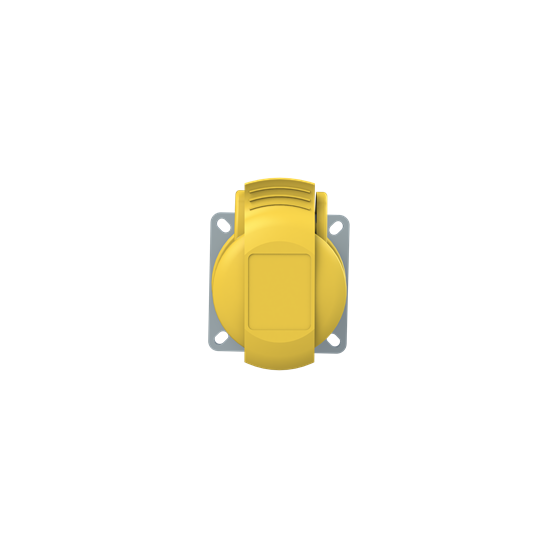

Socket-outlet, panel mounting, 4h, 16A, IP44, minimized flange, straight, 2P+E
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 216R4 |
| Product ID: | 2CMA193145R1000 |
| EAN: | 7392696931458 |
| Catalog Description: | Socket-outlet, panel mounting, 4h, 16A, IP44, minimized flange, straight, 2P+E |
| Long Description: | Panel mounted socket, earthing sleeve position 4h, rated current 16A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code Yellow |
| |
| E-Number (Sweden): | E2416602 |
| E-Number (Finland): | 2420123 |
| E-Number (Norway): | 1547301 |
| EAN: | 7392696931458 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 10 piece |
| |
| Product Net Width: | 56 mm |
| Product Net Height: | 73 mm |
| Product Net Weight: | 0.23 kg |
| |
| Package Level 1 Width: | 120 mm |
| Package Level 1 Depth / Length: | 138 mm |
| Package Level 1 Height: | 285 mm |
| Package Level 1 Gross Weight: | 2.3 kg |
| Package Level 1 EAN: | 7392696661454 |
| Package Level 1 Units: | box 10 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 2780 kg |
| Package Level 2 EAN: | 7392696079761 |
| Package Level 2 Units: | pallet (lift) 1200 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| SEMKO Certificate: | 1613211 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 2P+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 1.5 ... 4 mm² |
| Cable Diameter: | 6 ... 13 mm |
| Color: | Yellow |
| Connection Type: | Screw |
| Degree of Protection: | IP44 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Panel mounted socket |
| Housing Material: | Plastic (PA) |
| Invoice Description: | Ind. P&S#216R4 |
| Mounting Holes: | 46x46 |
| Mounting Type: | Minimized straight flange |
| Number of Poles: | 3 |
| Order Multiple: | 10 piece |
| Product Main Type: | ER |
| Product Name: | Panel mounted socket |
| Protection Type: | Splashproof |
| Rated Current (In): | 16 A |
| Rated Frequency (f): | 50...60 Hz |
| Rated Voltage (Ur): | 100 ... 130 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 60309-1, -2 |
| Suitable For: | Socket Outlets for Panel Mounting |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440504 |
| UNSPSC: | 39121406 |
| |
| Wire Size: | 14 ... 12 AWG |
| Tightening Torque: | WireClamp0.8 N·m |
