Article: 248-153TD
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Global Commercial Alias: | 248-153TD |
| Product ID: | 7B248-153TD |
| ABB Type Designation: | 1.5HP,3600RPM,3PH,60HZ,3516M,3516M, |
| Catalog Description: | 1.5HP,3600RPM,3PH,60HZ,3516M,3516M,TEFC |
| |
| ABB Type Designation: | 1.5HP,3600RPM,3PH,60HZ,3516M,3516M, |
| Ambient Temperature: | 40 °C |
| Brake Present: | No |
| Brand / Label: | Baldor-Reliance |
| Catalog Number: | 248-153TD |
| Certification Agency: | BKI |
| CCSA US | |
| CE | |
| CSA | |
| CSA EEV | |
| TUV | |
| UL | |
| UR | |
| Country of Origin: | United States (US) |
| Customs Tariff Number: | 85014080 |
| Design: | B |
| Dimension Diagram: | B2LY0005 |
| ETIM 7: | EC001851 - Electric motor |
| Efficiency Level: | Not Regulated / Exempt |
| Undefined Efficiency | |
| Enclosure Type: | TEFC |
| Frame Material: | Steel |
| Frequency (f): | 60 Hz |
| Global Commercial Alias: | 248-153TD |
| Gross Weight: | 38.136 kg |
| Horsepower Rating UL/CSA: | 1.500 Hp |
| IDEA Granular Category Code (IGCC): | 1325 >> General purpose motor AC |
| Invoice Description: | 1.5HP,3600RPM,3PH,60HZ,3516M,3516M,TEFC |
| Made To Order: | No |
| Minimum Order Quantity: | 1 piece |
| Motor Base Type: | Rigid |
| NEMA Design Code: | B |
| Number of Phases: | 3 |
| Number of Poles: | 2 |
| Number of Speeds: | Single Speed |
| Order Multiple: | 1 piece |
| Power Factor: | 76 % |

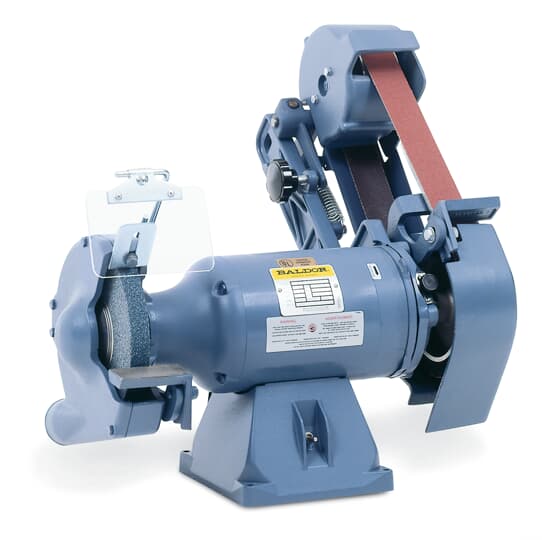

| Product Name: | Grinders/Buffers/Lathes/Belt Sander |
| Product Net Height: | 0 cm |
| Product Net Length: | 0 cm |
| Product Net Weight: | 38.136 kg |
| Product Net Width: | 0 cm |
| Product Type: | Undefined |
| Quote Only: | No |
| Rated Current (In): | 5 ... 4.6 A |
| 2.3 A | |
| Rated Speed: | 3,450 r/min |
| Selling Unit of Measure: | piece |
| Service Factor: | 1.15 |
| Service Factor Percentage: | 1.15 % |
| Starting of Motor: | Direct On Line |
| Stocked At (Warehouses): | China |
| Alabama, United States | |
| Alaska, United States | |
| UNSPSC: | 26101112 |
| Voltage Rating: | 208 V |
| 230 V | |
| 460 V |
