Article: 65P12X22Z
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 65P12X22Z |
| Product ID: | 1SLM006501A1204 |
| ABB Type Designation: | Mistral65 |
| EAN: | 8000126107647 |

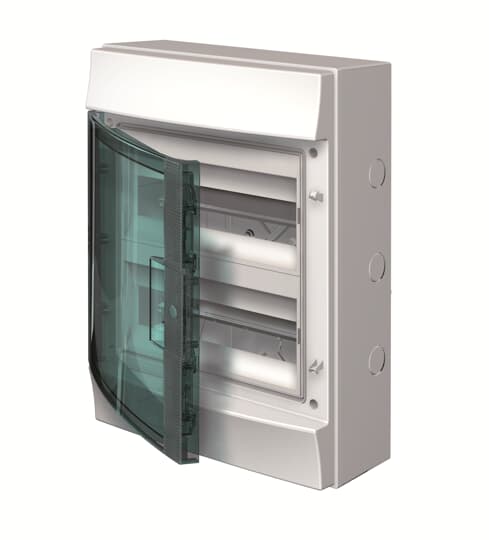

| Catalog Description: | 65P12X22Z Consumer Unit (with terminal bars) |
| Long Description: | MISTRAL65 transparent door 24M 22SM;MISTRAL65 transparent door 24M 22SM |
| |
| Product Name: | Consumer Unit (with terminal bars) |
| Power Loss: | 34 W |
| Number of Line Terminals: | 0 |
| Number of Rows: | 2 |
| ABB Type Designation: | Mistral65 |
| Cover Plate Type: | Door |
| Mounting Type: | Surface mounted (plaster) |
| Door Type: | Single |
| Enclosure Material: | thermoplastic |
| Housing Material: | Plastic |
| Transparent Door: | Yes |
| Cover Style: | with Notch |
| DIN Place Units: | 24 |
| RAL Number: | RAL 7035 - Light Grey |
| Color: | grey |
| |
| Degree of Protection: | IP65 |
| Protection Class: | Isolated |
| Environmental Information: | 1SLC801013D0201 |
| |
| Width in Number of Modular Spacings: | 24 |
| Product Net Width: | 320 mm |
| Product Net Height: | 435 mm |
| Product Net Depth / Length: | 155 mm |
| Product Net Weight: | 2.4 kg |
| |
| Package Level 1 Units: | box 4 piece |
| Package Level 1 Width: | 400 mm |
| Package Level 1 Height: | 510 mm |
| Package Level 1 Depth / Length: | 610 mm |
| Package Level 1 Gross Weight: | 10.625 kg |
| Package Level 1 EAN: | 8000126107654 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 1SLC801013D0201 |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 1SLT00003R2E0 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SLC801013D0201 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000214 - Small distribution board |
| ETIM 7: | EC000214 - Small distribution board |
| ETIM 8: | EC000214 - Small distribution board |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85371099 |
| Object Classification Code: | U |
