Article: PEB/U5.0.1-131
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | PEB/U5.0.1-131 |
| Product ID: | 2TAZ730500R1310 |
| EAN: | 6957625316068 |
| Catalog Description: | PEB/U5.0.1-131, 5/10F, Matt Silver |

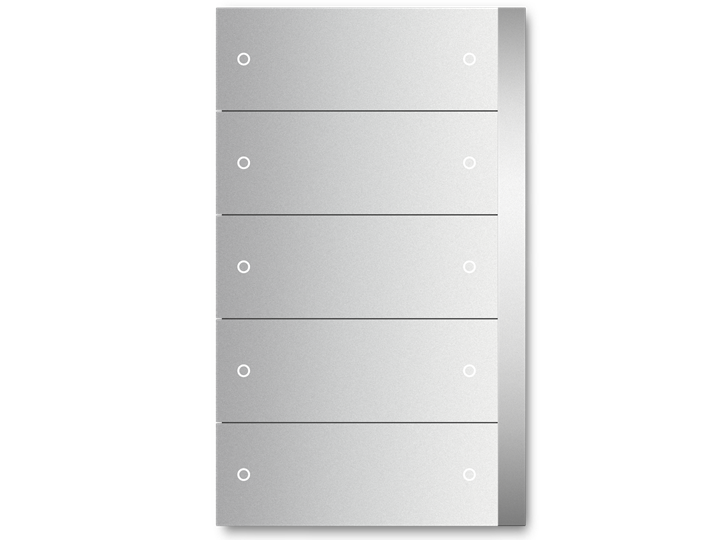

| Long Description: | ABB i-bus®KNX sensor PEONIA control element 5/10-fold, FM. With integrated bus coupling unit and temperature sensor. With proximity sensor, energy saving function. Switch contact left/right. Replaceable rocker without icon. Push button function: switching/dimming/blind/value sending/step-type switch/lightscene. Individual programmable LED per rocker. Top and bottom ambient LED strip. LED colour: red/green/yellow/blue/red-orange/violet/white. |
| |
| Product Name: | User Operation - PEONIA |
| Compatible Bus Systems: | KNX |
| Color: | Silver |
| |
| Product Net Width: | 85.7 mm |
| Product Net Height: | 143.55 mm |
| Product Net Depth / Length: | 40.2 mm |
| Product Net Weight: | 147.9 g |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 55 mm |
| Package Level 1 Height: | 162 mm |
| Package Level 1 Depth / Length: | 106 mm |
| Package Level 1 Gross Weight: | 275 g |
| Package Level 1 EAN: | 6957625316068 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536500090 |
| Country of Origin: | China (CN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107046A2799 |
| Instructions and Manuals: | 9AKK107046A2227 |
| RoHS Information: | 9AKK107046A2799 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A2835 |
| Instructions and Manuals: | 9AKK107046A2227 |
| |
| ETIM 6: | EC000672 - Touch sensor for bus system |
| ETIM 7: | EC000672 - Touch sensor for bus system |
| ETIM 8: | EC000672 - Touch sensor for bus system |
| WEEE Category: | Product Not in WEEE Scope |
