General Information | |
| Extended Product Type: | M12-C03 |
| Product ID: | 2TLA020055R1600 |
| EAN: | 7350024452310 |
| Catalog Description: | M12-C03 Connector |

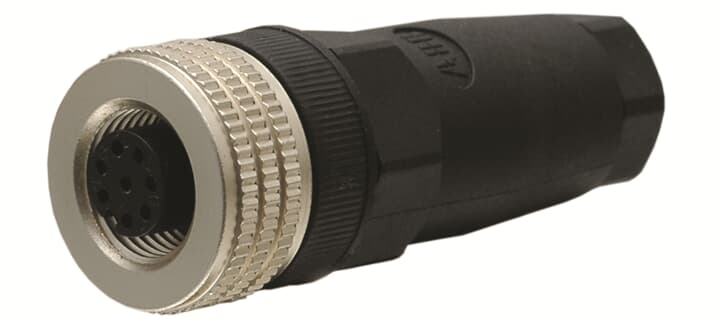

| Long Description: | Straight M12-8 female connector with cable screw connection. Cable diameter range 2.5–6.5 mm. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8544429090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| |
| Product Net Depth / Length: | 70 mm |
| Product Net Height: | 20 mm |
| Product Net Width: | 20 mm |
| Product Net Weight: | 0.02 kg |
| |
| Degree of Protection: | IP65 |
| Rated Control Supply Voltage (Us): | 24 V |
| Suitable For: | JSHD4-2-AD |
| JSHD4-2-AD-A | |
| JSHD4-3-AD | |
| JSHD4-3-AD-A | |
| JSHD4-3-AE | |
| JSHD4-4-AD | |
| JSHD4-4-AD-A | |
| JSHD4-5-AD | |
| JSHD4-5-AD-A | |
| Adam OSSD-Info M12-8 | |
| Adam OSSD-Reset M12-8 | |
| |
| Declaration of Conformity - CE: | No declaration needed |
| |
| Object Classification Code: | X |
| ETIM 4: | EC002638 - Cable connector |
| ETIM 5: | EC002638 - Cable connector |
| ETIM 6: | EC002062 - Sensor-actuator connector |
| ETIM 7: | EC002635 - Circular connector for field assembly (industrial connector) |
| eClass: | V11.0 : 27060313 |
| UNSPSC: | 39121438 |
| E-Number (Sweden): | 3861438 |
