General Information | |
| Extended Product Type: | MKey Key 2 |
| Product ID: | 2TLA050040R0202 |
| EAN: | 7350024467420 |
| Catalog Description: | MKey Key 2 Actuator |

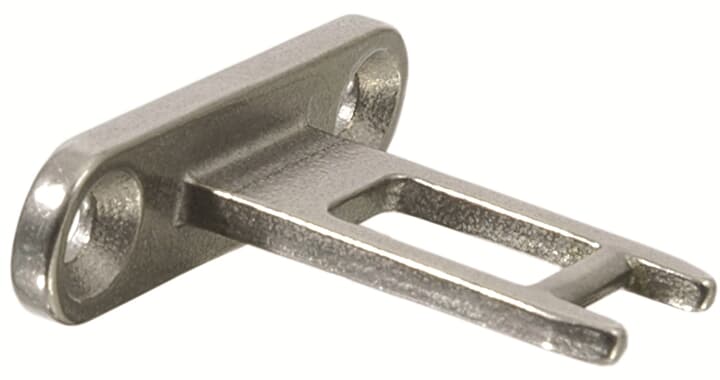

| Long Description: | Standard key for MKey safety switches with metal head. Key in stainless steel 316. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8538909999 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Instructions and Manuals: | 2TLC172244M0201 |
| |
| Product Net Depth / Length: | 14 mm |
| Product Net Height: | 40 mm |
| Product Net Width: | 54 mm |
| Product Net Weight: | 0.031 kg |
| |
| Suitable For: | MKey5 SSH |
| MKey5+ SSH | |
| MKey5Z | |
| MKey5+Z | |
| MKey9M 24VDC | |
| MKey8M 24VDC | |
| MKey9 24VDC | |
| MKey9 24VDC No Key | |
| MKey8 24VDC | |
| MKey8ER 24VDC | |
| MKey8Z 24 VDC | |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2TLC172244M0201 |
| |
| Object Classification Code: | R |
| ETIM 4: | EC001044 - Mechanic interlock for switch |
| ETIM 5: | EC001044 - Mechanic interlock for switch |
| ETIM 6: | EC001487 - Actuator for position switch with separate actuator |
| ETIM 7: | EC001487 - Actuator for position switch with separate actuator |
| eClass: | V11.0 : 27270605 |
| UNSPSC: | 39122221 |
