Article: N2239 AN
Article: N2239 AN

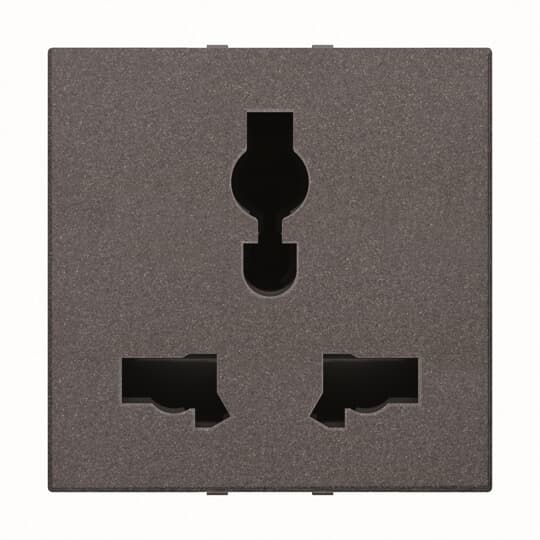

N2239 AN Universal socket outlet - 2M - Anthracite
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2239 AN |
| Product ID: | 2CLA223900N1803 |
| EAN: | 8427238195346 |
| Catalog Description: | N2239 AN Universal socket outlet - 2M - Anthracite |
| Long Description: | Color: Anthracite.Rated voltage: 125 / 250 Vac Rated current: 13 / 16A Multiple type: 2P + E Shuttered for child safety Screw terminalsSize: 2 modules. |
| |
| Product Name: | Universal socket outlet - 2M - Anthracite |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 52 g |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 11 mm |
| Package Level 1 Height: | 5 mm |
| Package Level 1 Depth / Length: | 293 mm |
| Package Level 1 Gross Weight: | 0.52 kg |
| Package Level 1 EAN: | 8427238195346 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85366990 |
| Country of Origin: | China (CN) |
| Selling Unit of Measure: | piece |
| |
| Instructions and Manuals: | 9AKK10103A5108 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 9AKK10103A5108 |
| |
| ETIM 6: | EC000125 - Socket outlet |
| ETIM 7: | EC000125 - Socket outlet |
| ETIM 8: | EC000125 - Socket outlet |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85366990 |
| UNSPSC: | 39121406 |
