General Information | |
| Extended Product Type: | N2241 PL |
| Product ID: | 2CLA224100N1301 |
| EAN: | 8427238074719 |

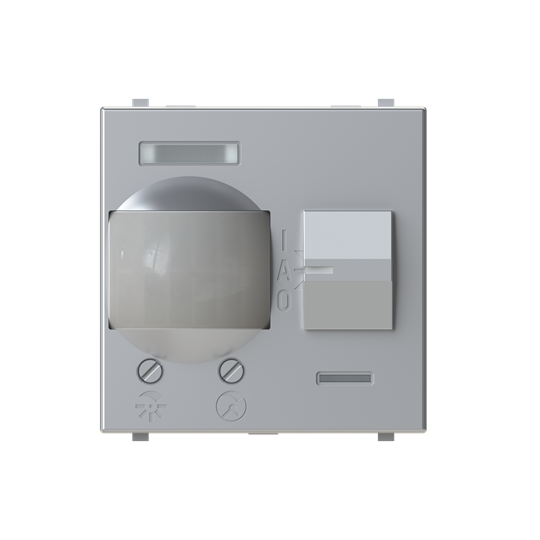

| Catalog Description: | N2241 PL 110° motion sensor - 2M - Silver |
| Long Description: | Color: Silver.Rated voltage: 127 - 230 Vac ± 10% / 50 - 60 HzOutputs: 1 Normally Open (NO). Potential freeMax. power: - Incandescent: 1.800W @230Vac / 1.000W @127Vac - Halogen with electronic o ferromagnetic transformer: 750VA @230Vac / 400VA @127Vac - Fluorescent lamps or motors: 400VA @230Vac / 200VA @127Vac For automatic switching of devices dependent on motion and brightness.With integrated selector switch for ON-AUTOMATIC-OFF in the front side.Switch-off delay: 10 sec to 10 min or short-time pulse 1 sec adjustable (from the front side).Detection range: 5 m radiousAdjustable light set point level for activation (from the front side).Detection angle: 110 °Mounting height: 1,2 mAuxiliary control with N2X04.X push-buttonsTemperature range (Device): -10 °C to 40 °CSize: 2 modules. |
| |
| Product Name: | 110° motion sensor - 2M - Silver |
| Rated Voltage (Ur): | 230 V |
| Input Voltage Type: | AC |
| Current Range: | Minimum 3 A |
| Maximum 8 A | |
| Maximum Control Current DC: | 1800 mA |
| Frequency (f): | 50...60 Hz |
| Maximum Switching Power: | 1800 W |
| Number of Switching Zones: | 3 |
| Delay Time (?): | On 10 second [unit of time] |
| Off 600 second [unit of time] | |
| Connection Type: | Screw |
| Mounting Type: | Flush mounted (plaster) |
| Sensor Type: | Passive infrared |
| Surface Finishing: | Surface protection: Decor |
| Surface finishing: Matt | |
| Material: | Plastic |
| Illuminance: | 3...1000 lx |
| Model Number: | Movement sensor |
| RAL Number: | RAL 9010 - Pure White |
| Color: | Silver |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Depth / Length: | 40 mm |
| Product Net Weight: | 0.1 kg |
| Built-In Depth (t2): | 32 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.076 m |
| Package Level 1 Height: | 0.064 m |
| Package Level 1 Depth / Length: | 0.076 m |
| Package Level 1 Gross Weight: | 0.1 kg |
| Package Level 1 EAN: | 8427238074719 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106930A2195 |
| Instructions and Manuals: | 2CLX224109N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX224109N1001 |
| |
| ETIM 6: | EC000133 - Movement sensor complete |
| ETIM 7: | EC000133 - Movement sensor complete |
| ETIM 8: | EC000133 - Movement sensor complete |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
