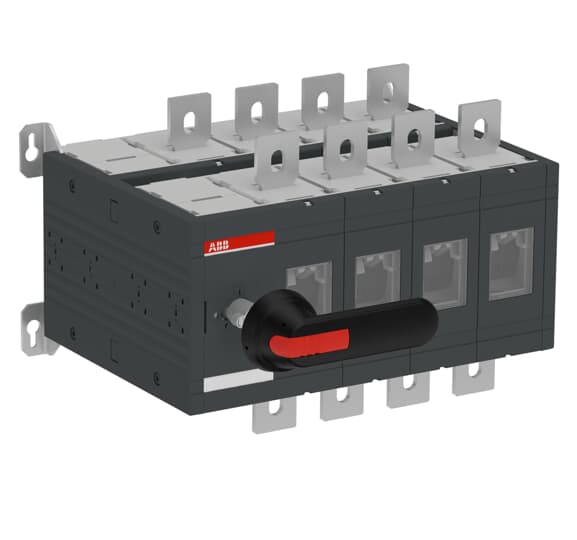

Article: OT630E04DP
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT630E04DP |
| Product ID: | 1SCA113350R1001 |
| EAN: | 6417019459332 |
| Catalog Description: | OT630E04DP SWITCH-DISCONNECTOR |
| Long Description: | OT630E04DP SWITCH-DISCONNECTOR |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Instructions and Manuals: | 1SCC301075F0204 |
| |
| Product Net Width: | 376 mm |
| Product Net Height: | 250 mm |
| Product Net Depth / Length: | 280 mm |
| Product Net Weight: | 16.8 kg |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 630 A |
| (500 V) 630 A | |
| (690 V) 630 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 630 A |
| (500 V) 630 A | |
| (690 V) 630 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 630 A |
| (500 V) 630 A | |
| (690 V) 630 A | |
| Rated Operational Power AC-23A (Pe): | (220 ... 240 V) 200 kW |
| (400 ... 415 V) 355 kW | |
| (500 V) 400 kW | |
| (690 V) 630 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 630 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 630 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 80 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 20 kA |
| Power Loss: | at Rated Operating Conditions per Pole 25 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft included |
| Operating Mode: | Front operated |
| Standards: | IEC 60947-3 |
| Number of Poles: | 8 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Terminal Width: | 39 mm |
| Tightening Torque: | acc. IEC 60947-1 50…75 N·m |
| Mechanical Durability: | 10000 |
| Lock Type: | Yes |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SCC301140D2704 |
| Instructions and Manuals: | 1SCC301075F0204 |
| RoHS Information: | 1SCC301149D0203 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 310 mm |
| Package Level 1 Depth / Length: | 560 mm |
| Package Level 1 Height: | 330 mm |
| Package Level 1 Gross Weight: | 21.6 kg |
| Package Level 1 EAN: | 6417019459332 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
