Article: M12-CT132
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | M12-CT132 |
| Product ID: | 2TLA020060R0600 |
| EAN: | 7350024452624 |
| Catalog Description: | M12-CT132 Orion cable |

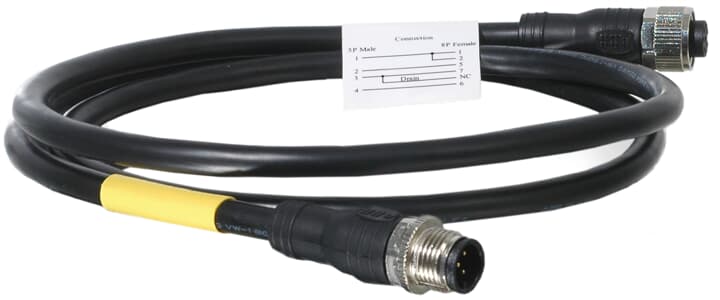

| Long Description: | M12-CT132 Transfer cable, L=1 m, 8 x 0.34 mm2 + shield with straight M12-5 male + M12-8 female connectors. Shield connected to pin 3 (0V) on male connector. Can be used when connecting Orion2 Base, Orion2 Extended and Orion3 Extended to an URAX-D1R. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8544429090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010088L0201 |
| Instructions and Manuals: | 2TLC172101L0201 |
| |
| Product Net Depth / Length: | 13 mm |
| Product Net Height: | 13 mm |
| Product Net Width: | 1 m |
| Product Net Weight: | 0.1 kg |
| |
| Rated Control Supply Voltage (Us): | 24 V |
| Suitable For: | Orion2 Base |
| Orion2 Extended | |
| Orion3 Extended | |
| |
| cULus Certificate: | 2TLC172257D0201 |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2TLC172101L0201 |
| |
| Object Classification Code: | W |
| ETIM 4: | EC000057 - Low voltage power cable |
| ETIM 5: | EC000057 - Low voltage power cable |
| ETIM 6: | EC001855 - Sensor-actuator patch cord |
| ETIM 7: | EC003015 - Accessories for sensor technology |
| eClass: | V11.0 : 27060313 |
| UNSPSC: | 39121438 |
| E-Number (Sweden): | 3860117 |
