Article: M65TT354
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | M65TT354 |
| Product ID: | 1SLM006500S1915 |
| EAN: | 8000126107159 |
| Catalog Description: | M65TT354 M65TT354 Transparent door M65 3x18 |

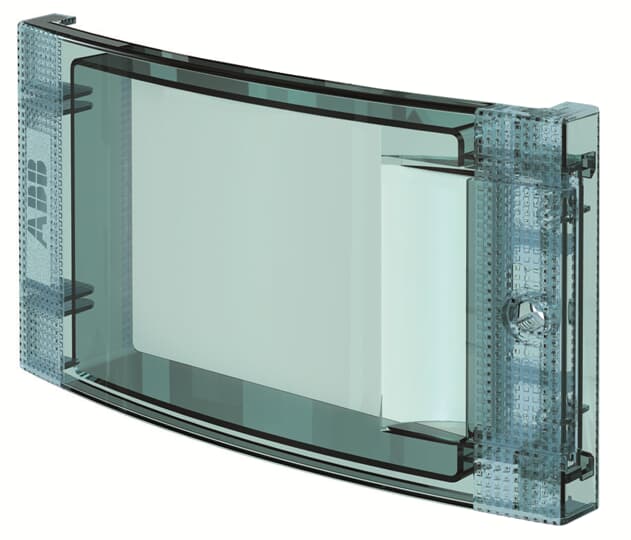

| Long Description: | The transparent door (color: Petrol Blue) has a door opening angle of 180 degrees. The door hinge can be conveniently replaced by turning the frontal frame or the entire circuit distributor. The ergonomic handle with a snap lock simplifies the opening and closing of the door. A safety lock may be optionally used. Transparent door, suitable for Mistral 65 circuit distributor series, M65W354TN3, 3-row, 3 x 18 space units. |
| |
| Product Name: | M65TT354 Transparent door M65 3x18 |
| Surface Finishing: | Untreated |
| Material: | Plastic |
| DIN Place Units: | 54 |
| Model Number: | Protective door |
| Color: | Other |
| |
| Degree of Protection: | IP65 |
| |
| Product Net Width: | 330.000 mm |
| Product Net Height: | 530.000 mm |
| Product Net Depth / Length: | 445.000 mm |
| Product Net Weight: | 0.919 kg |
| |
| Package Level 1 Units: | 8 piece |
| Package Level 1 Width: | 330.000 mm |
| Package Level 1 Height: | 530.000 mm |
| Package Level 1 Depth / Length: | 445.000 mm |
| Package Level 1 Gross Weight: | 0.932 kg |
| Package Level 1 EAN: | 8000126107173 |
| Package Level 2 Units: | 8 piece |
| Package Level 2 Width: | 330.000 mm |
| Package Level 2 Height: | 530.000 mm |
| Package Level 2 Depth / Length: | 445.000 mm |
| Package Level 2 Gross Weight: | 7.456 kg |
| Package Level 2 EAN: | 8000126107173 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000747 - Door/operating panel (switchgear cabinet) |
| ETIM 7: | EC000747 - Door/operating panel (switchgear cabinet) |
| ETIM 8: | EC000747 - Door/operating panel (enclosure/cabinet) |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Business |
| Object Classification Code: | U |
