Article: MEPY1-1041
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MEPY1-1041 |
| Product ID: | 1SFA611821R1041 |
| EAN: | 7320500512968 |
| Catalog Description: | Modular Enclosure MEPY1-1041 |

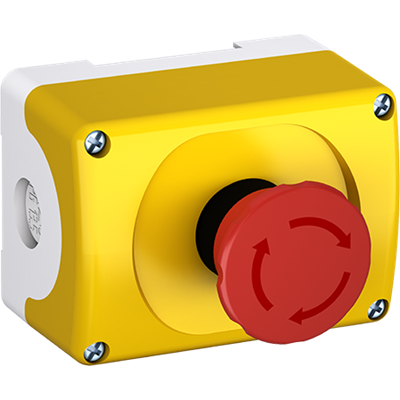

| Long Description: | Assembled Enclosure Modular Emergency stop MEPY1-1041, 40mm twist release, 1 pos, yellow plastic, 2NC+1NO |
| |
| Product Name: | Enclosure |
| Rated Operational Voltage: | 24 ... 690 V AC/DC |
| Number of Auxiliary Contacts NC: | 2 |
| Number of Auxiliary Contacts NO: | 1 |
| Product Range: | Modular |
| Enclosure Type NEMA: | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Housing Material: | Plastic |
| Material: | Plastic |
| Color: | Yellow/Light grey |
| |
| Degree of Protection: | Front IP66 |
| Housing IP66 | |
| Terminals IP20 | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| Product Net Width: | 0.101 m |
| Product Net Height: | 0.075 m |
| Product Net Depth / Length: | 0.109 m |
| Product Net Weight: | 0.223 kg |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 EAN: | 7320500512968 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369001 |
| E-Number (Sweden): | 3705899 |
| Country of Origin: | Sweden (SE) |
| Selling Unit of Measure: | piece |
| |
| CQC Certificate: | CQC2005010304154103 |
| cULus Certificate: | 9AKK107046A9925 |
| Declaration of Conformity - CCC: | 2020980305001528 |
| Declaration of Conformity - CE: | 2CMT2015-005452 |
| DNV GL Certificate: | E-14107 |
| EAC Certificate: | EAC RU C-CN.ME77.B.00537/19 |
| Instructions and Manuals: | 1SFC151011M0201 |
| RoHS Information: | 2CMT2015-005444 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SFC151007C02__ |
| Instructions and Manuals: | 1SFC151011M0201 |
| |
| ETIM 6: | EC000225 - Control circuit devices combination in enclosure |
| ETIM 7: | EC000225 - Control circuit devices combination in enclosure |
| ETIM 8: | EC000225 - Control circuit devices combination in enclosure |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 8536 90 01 |
| UNSPSC: | 39121326 |
| eClass: | V11.0 : 27371216 |
