Article: MR833P
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MR833P |
| Product ID: | 7TBA008930R0127 |
| EAN: | 0067396015162 |

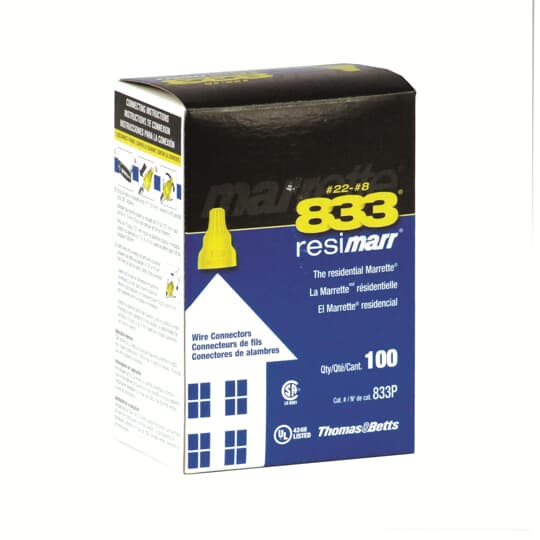

| Catalog Description: | MARRETTE NO 833 YELLOW BOX/100 |
| Long Description: | Twist-on Wire Connector with Wing Design, Marrette #833, Yellow Polypropylene, Rated 105 degree C - 600 Volts. Wire range: #22-#8 AWG for Copper Conductors only. Square Wire Inner Spring Construction, Box of 100. |
| |
| EAN: | 0067396015162 |
| UPC: | 067396015162 |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 7 in |
| 178 mm | |
| Package Level 1 Height: | 5.5 in |
| 140 mm | |
| Package Level 1 Depth / Length: | 12.94 in |
| 329 mm | |
| Package Level 2 Units: | 1400 piece |
| Package Level 2 Width: | 40 in |
| 1016 mm | |
| Package Level 2 Height: | 43.5 in |
| 1105 mm | |
| Package Level 2 Depth / Length: | 48 in |
| 1219 mm | |
| |
| Brand / Label: | Marrette |
| Color: | Yellow |
| Effective Date: | 20060406 |
| Material: | Polypropylene |
| Mounting Type: | Twist-On |
| Number of Batteries: | 0 |
| Product Name: | WIRE CONNECTORS PROBOX OF 100 |
| Product Type: | Wire Connector |
| Temperature Range: | 221 °F |
| 105 °C | |
| Voltage Rating: | 600 V |
| |
| Data Sheet, Technical Information: | MR833P |
| Instructions and Manuals: | MR833P |
| |
| ETIM 6: | EC002319 - Wire connector |
| ETIM 7: | EC002319 - Wire connector |
| UNSPSC: | 39121445 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4665 >> Twist on wire connector |
