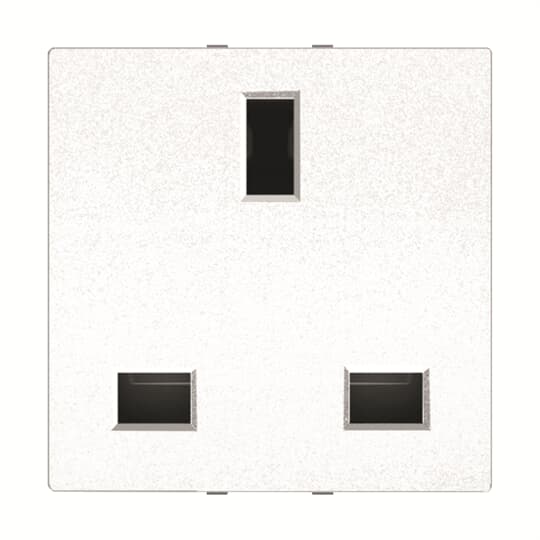

N2237 BL British standard socket outlet - 2M - White
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2237 BL |
| Product ID: | 2CLA223700N1101 |
| EAN: | 8427238082707 |
| Catalog Description: | N2237 BL British standard socket outlet - 2M - White |
| Long Description: | Color: White.Rated voltage: 250 Vac Rated current: 13A Type G: 2P + E Without switch Shuttered for child safety Screw terminalsSize: 2 modules. |
| |
| Product Name: | British standard socket outlet - 2M - White |
| Rated Voltage (Ur): | 220 V |
| Rated Current (In): | 15 A |
| Frequency (f): | 50...60 Hz |
| Number of Phases: | 2 |
| Number of Active Pin Terminals: | 0 |
| Number of Gangs: | 1 |
| Connection Type: | Screw |
| Mounting Type: | Flush mounted (plaster) |
| Socket Outlet Type: | Power Socket Outlets - British acc. to BS1363 |
| Type of Fastening: | Snapper Mounting |
| Surface Finishing: | Untreated |
| Glossy | |
| Material: | Thermoplastic |
| Plastic | |
| Legend: | Without imprint |
| Model Number: | British Standard |
| RAL Number: | RAL 9010 - Pure White |
| Color: | White |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 0.052 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.11 m |
| Package Level 1 Height: | 0.05 m |
| Package Level 1 Depth / Length: | 0.293 m |
| Package Level 1 Gross Weight: | 0.52 kg |
| Package Level 1 EAN: | 8427238082707 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85366990 |
| Country of Origin: | China (CN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX210109N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX210109N1001 |
| |
| ETIM 6: | EC000125 - Socket outlet |
| ETIM 7: | EC000125 - Socket outlet |
| ETIM 8: | EC000125 - Socket outlet |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85366990 |
