Article: MREBC10AC2
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MREBC10AC2 |
| Product ID: | 1SAL100541R9906 |
| EAN: | 4013614550492 |
| Catalog Description: | MREBC10AC2 Timer |

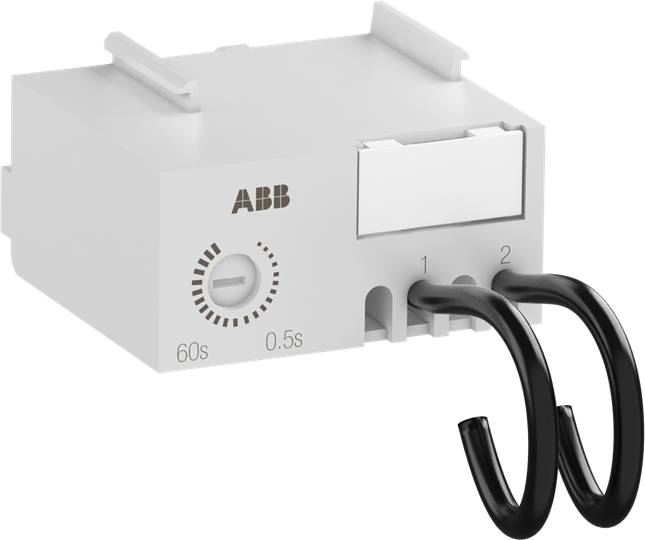

| Long Description: | MREBC10AC2 Electronic Timer 0.5-60s 24-250 V AC/DC |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| Popular Downloads | |
| Instructions and Manuals: | 2CDC102077M9901 |
| |
| Product Net Width: | 35 mm |
| Product Net Height: | 21 mm |
| Product Net Depth / Length: | 36 mm |
| Product Net Weight: | 0.04 kg |
| |
| Rated Operational Voltage: | 24 ... 250 V AC/DC |
| Standards: | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Product Name: | Timer |
| Suitable For: | MC1 |
| MC2 | |
| MCR | |
| Suitable for Product Class: | Mini Contactors |
| |
| Ambient Air Temperature: | Operation -25 ... +55 °C |
| Storage -55 ... +80 °C | |
| |
| cULus Certificate: | cUL_E48139 |
| Declaration of Conformity - CE: | 1SAD938500-0313 |
| Declaration of Conformity - UKCA: | 1SAD938500-1313 |
| Instructions and Manuals: | 2CDC102077M9901 |
| |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Depth / Length: | 25 mm |
| Package Level 1 Height: | 100 mm |
| Package Level 1 Gross Weight: | 0.045 kg |
| Package Level 1 EAN: | 4013614550492 |
| Package Level 1 Units: | bag 1 piece |
| Package Level 2 Width: | 100 mm |
| Package Level 2 Depth / Length: | 150 mm |
| Package Level 2 Height: | 105 mm |
| Package Level 2 Gross Weight: | 0.45 kg |
| Package Level 2 EAN: | 4013614550966 |
| Package Level 2 Units: | box 10 piece |
| |
| Object Classification Code: | K |
| ETIM 5: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| eClass: | V11.0 : 27371392 |
| UNSPSC: | 39121529 |
| E-Number (Finland): | 3709742 |
