General Information | |
| Extended Product Type: | OT315E03P |
| Product ID: | 1SCA022718R8510 |
| EAN: | 6417019230436 |

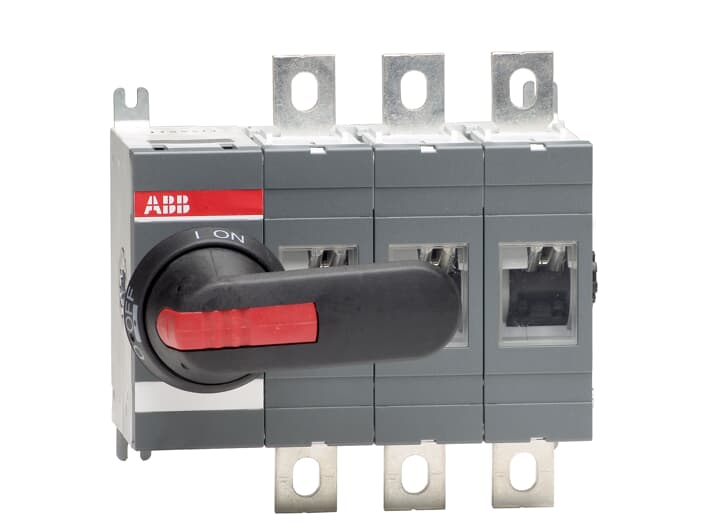

| Catalog Description: | OT315E03P SWITCH-DISCONNECTOR |
| Long Description: | 3-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC301020C0201 |
| Instructions and Manuals: | 1SCC301035M0019 |
| Mechanical Drawings: | 1SCC301278F0001 |
| 1SCC301277F0001 | |
| OT315-400E03.stp | |
| OT315-400E03.igs | |
| |
| Product Net Width: | 191 mm |
| Product Net Height: | 185 mm |
| Product Net Depth / Length: | 107 mm |
| Product Net Weight: | 3.2 kg |
| 7 lb | |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| (1000 V) 315 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Power AC-23A (Pe): | (220 ... 240 V) 100 kW |
| (400 ... 415 V) 180 kW | |
| (500 V) 220 kW | |
| (690 V) 315 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 315 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 315 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 65 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 15 kA |
| Power Loss: | at Rated Operating Conditions per Pole 6.5 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft included |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out |
| Bottom In - Top Out | |
| Operating Mode: | Front operated |
| Standards: | IEC 60947-3 |
| Special Functions: | No |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Terminal Width: | 25 mm |
| Tightening Torque: | acc. IEC 60947-1 30…44 N·m |
| Mechanical Durability: | 16000 |
| Lock Type: | Yes |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SCC301149D0202 |
| |
| BV Certificate: | 1SCC301103D0201 |
| Declaration of Conformity - CE: | 1SCC301135D2704 |
| DNV GL Certificate: | 1SCC301174D0204 |
| Environmental Information: | 1SCC301149D0202 |
| GL Certificate: | 1SCC301139D0201 |
| Instructions and Manuals: | 1SCC301035M0019 |
| LR Certificate: | 1SCC301144D0201 |
| RoHS Information: | 1SCC301149D0203 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 220 mm |
| 8.7 in | |
| Package Level 1 Depth / Length: | 260 mm |
| 10.2 in | |
| Package Level 1 Height: | 155 mm |
| 6.1 in | |
| Package Level 1 Gross Weight: | 3.5 kg |
| 7.8 lb | |
| Package Level 1 EAN: | 6417019230436 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland): | 3661402 |
| E-Number (Sweden): | 3171195 |
