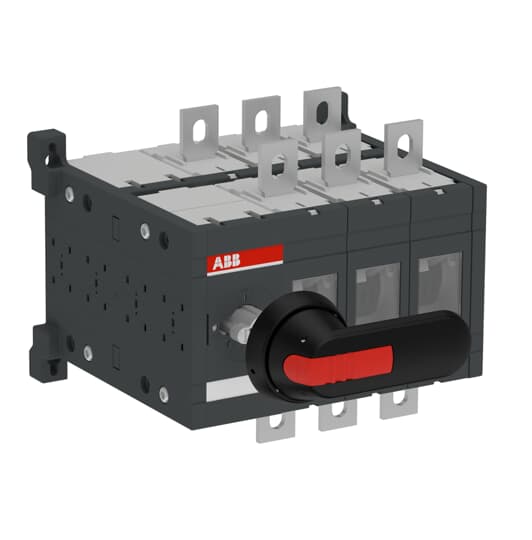

Article: OT315E03DP
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT315E03DP |
| Product ID: | 1SCA107314R1001 |
| EAN: | 6417019408057 |
| Catalog Description: | OT315E03DP SWITCH-DISCONNECTOR |
| Long Description: | OT315E03DP SWITCH-DISCONNECTOR |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Instructions and Manuals: | 1SCC301075F0204 |
| Mechanical Drawings: | OT315-400E03D.igs |
| |
| Product Net Width: | 221 mm |
| Product Net Height: | 185 mm |
| Product Net Depth / Length: | 202.5 mm |
| Product Net Weight: | 6.1 kg |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current DC-21B (Ie): | (1000 V) 315 A |
| Rated Operational Power AC-23A (Pe): | (220 ... 240 V) 100 kW |
| (400 ... 415 V) 180 kW | |
| (500 V) 220 kW | |
| (690 V) 315 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 315 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 315 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 65 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 15 kA |
| Power Loss: | at Rated Operating Conditions per Pole 6.5 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft included |
| Operating Mode: | Front operated |
| Standards: | IEC 60947-3 |
| Number of Poles: | 6 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Terminal Width: | 25 mm |
| Tightening Torque: | acc. IEC 60947-1 30…44 N·m |
| Mechanical Durability: | 16000 |
| Lock Type: | Yes |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SCC301135D2704 |
| Instructions and Manuals: | 1SCC301075F0204 |
| RoHS Information: | 1SCC301149D0203 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 240 mm |
| Package Level 1 Depth / Length: | 270 mm |
| Package Level 1 Height: | 218 mm |
| Package Level 1 Gross Weight: | 6.5 kg |
| Package Level 1 EAN: | 6417019408057 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
