General Information | |
| Extended Product Type: | MMP C1000PV |
| Product ID: | 7TCA085460R0206 |
| EAN: | 5414363187684 |

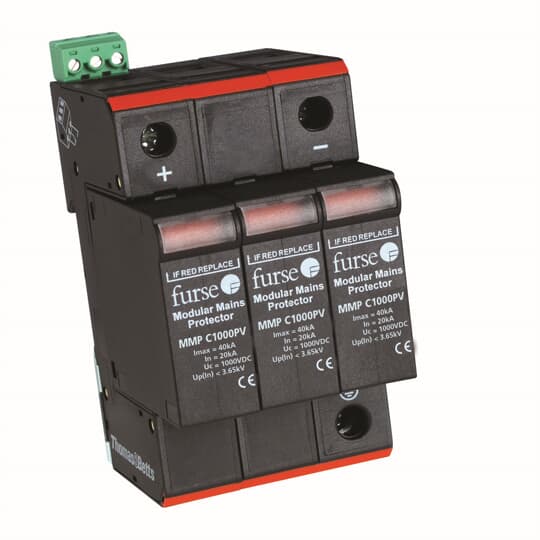

| Catalog Description: | MMP C1000PV Surge Protective Device |
| Long Description: | MMP C1000PV TYPE 2 POWER SPD FOR PHOTOVOLTAIC PV SYSTEMS UP TO 1000VDC, 40kA 8/20 |
| |
| Standards: | IEC 61643-11 |
| Product Name: | Surge Protective Devices |
| Suitable For: | To protect systems against transient overvoltages or surges from lightning and electrical switching events |
| Discharge Current: | Nominal 20 kA |
| I (max, 8 / 20 µs) 40 kA | |
| Short Circuit Withstand Icc: | <100 A |
| Arrester Class: | II |
| Number of Protected Poles: | 2 |
| Connection Type: | Screw Clamp |
| Remote Indicator: | No |
| Wire Stripping Length: | 11 mm |
| |
| Ambient Air Temperature: | Operation -40 ... +80 °C |
| |
| Width in Number of Modular Spacings: | 3 |
| Product Net Width: | 102 mm |
| Product Net Height: | 76 mm |
| Product Net Depth / Length: | 19 mm |
| Product Net Weight: | 0.14 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 EAN: | 5414363187684 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536308000 |
| Country of Origin: | Slovenia (SI) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 7TKK00515 |
| Instructions and Manuals: | 9AKK106713A1411 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A5279 |
| Instructions and Manuals: | 9AKK106713A1411 |
| |
| ETIM 6: | EC002496 - Accessories for surge protection power supply systems |
| ETIM 7: | EC002496 - Accessories for surge protection power supply systems |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8536308000 |
