Article: N2224.1 PL
Article: N2224.1 PL

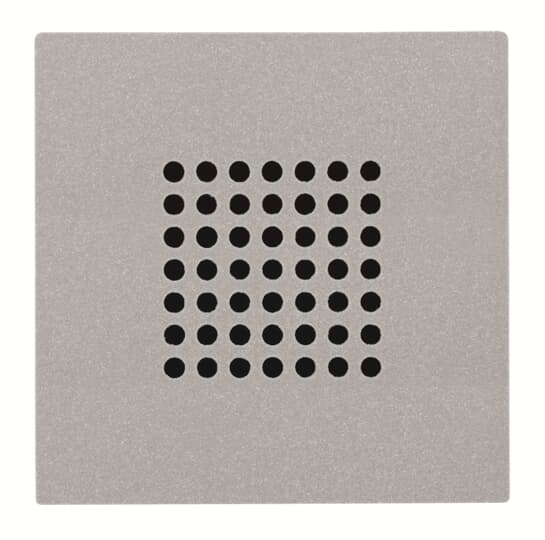

N2224.1 PL Electronic door bell 127Vac - 2M - Silver
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | N2224.1 PL |
| Product ID: | 2CLA222410N1301 |
| EAN: | 8427238086514 |
| Catalog Description: | N2224.1 PL Electronic door bell 127Vac - 2M - Silver |
| Long Description: | Color: Silver.Rated voltage: 127 Vac / 60 Hz4 melodies availableAcoustic power at 1 meter with cover plate: 72 dBSize: 2 modules. |
| |
| Product Name: | Electronic door bell 127Vac - 2M - Silver |
| Current Type: | AC |
| Rated Voltage (Ur): | 230 V |
| Power Consumption (@P | |
| cons | 0.2 A |
| Sound dB (A): | 72 dB |
| Mounting Type: | Flush mounted (plaster) |
| Housing Material: | Plastic |
| Housing Color: | Grey |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 2 |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 0.121 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.076 m |
| Package Level 1 Height: | 0.064 m |
| Package Level 1 Depth / Length: | 0.076 m |
| Package Level 1 Gross Weight: | 0.121 kg |
| Package Level 1 EAN: | 8427238086514 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX224449A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX224449A1001 |
| |
| ETIM 6: | EC000131 - Bell |
| ETIM 7: | EC000131 - Bell |
| ETIM 8: | EC000131 - Bell |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
