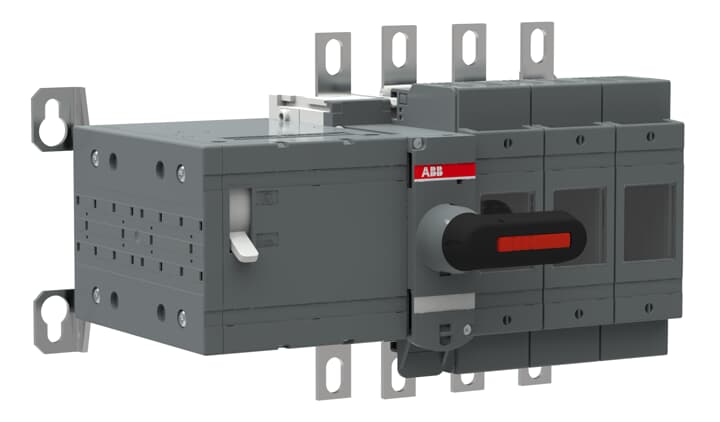

OSM200D3N3M230C MOTORIZED SWITCH FUSE
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OSM200D3N3M230C |
| Product ID: | 1SCA104282R1001 |
| EAN: | 6417019384856 |
| Catalog Description: | OSM200D3N3M230C MOTORIZED SWITCH FUSE |
| Long Description: | Including a handle for manual operation, bolt kit with nut and washers for all terminals (100A…1250A), male connectors for control circuit and a handle and spare fuse storage clip. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC311013C0201 |
| Instructions and Manuals: | 1SCC311029M0203 |
| |
| Product Net Width: | 324 mm |
| Product Net Height: | 206 mm |
| Product Net Depth / Length: | 199 mm |
| Product Net Weight: | 6.61 kg |
| 14.57 lb | |
| |
| Rated Operational Current AC-21A (Ie): | (500 V) 200 A |
| (380 ... 415 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe): | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 200 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Rated Short-time Withstand Current (Icw): | for 1 s 8 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc): | (690 V) 80 kA |
| Motor Operational Voltage: | 220 ... 240 V AC |
| Power Loss: | at Rated Operating Conditions per Pole 8 W |
| Pollution Degree: | 3 |
| Handle Type: | Handle included for manual operation |
| Fourth Pole Type: | Detachable Neutral Link Integrated Into the Mechanism |
| Switches Operating Mechanism: | 03 (Left Side) |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Fuse Size: | 0 |
| Fuse System: | DIN |
| Operating Mode: | Motor operated and manually from the front |
| Standards: | IEC 60947-3 |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Terminal Type: | Lug terminals |
| Fuse Type: | DIN |
| |
| Environmental Information: | 1SCC311002D0201 |
| |
| Declaration of Conformity - CE: | 1SCC311151D2703 |
| Environmental Information: | 1SCC311002D0201 |
| Instructions and Manuals: | 1SCC311029M0203 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 215 mm |
| 8.46 in | |
| Package Level 1 Depth / Length: | 395 mm |
| 15.55 in | |
| Package Level 1 Height: | 215 mm |
| 8.46 in | |
| Package Level 1 Gross Weight: | 8.31 kg |
| 18.32 lb | |
| Package Level 1 EAN: | 6417019384856 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC001040 - Fuse switch disconnector |
| ETIM 6: | EC001040 - Fuse switch disconnector |
| ETIM 7: | EC001040 - Fuse switch disconnector |
| ETIM 8: | EC001040 - Fuse switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland): | 3638116 |
