Article: OT16M3
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT16M3 |
| Product ID: | 1SCA022497R0220 |
| EAN: | 6417019158389 |

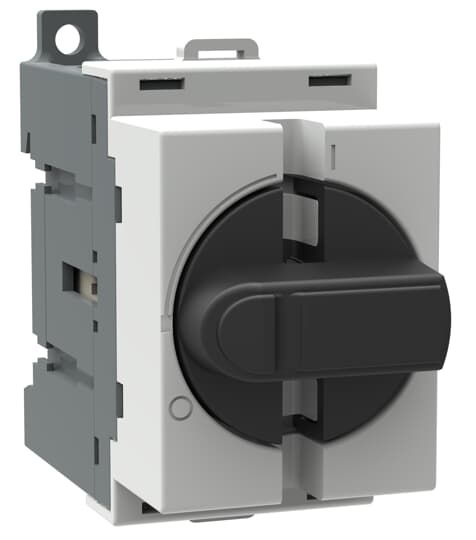

| Catalog Description: | OT16M3 SWITCH-DISCONNECTOR |
| Long Description: | 3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector with protected clamp terminals, handle and shaft are not included, suitable for distribution board with 45mm slots |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC301020C0201 |
| Instructions and Manuals: | 1SCC301052M0006 |
| |
| Product Net Width: | 35 mm |
| Product Net Height: | 68 mm |
| Product Net Depth / Length: | 73 mm |
| Product Net Weight: | 0.09 kg |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 16 A |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 16 A |
| (500 V) 16 A | |
| (690 V) 16 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 16 A |
| (500 V) 16 A | |
| (690 V) 10 A | |
| Rated Operational Power AC-23A (Pe): | (220 ... 240 V) 3 kW |
| (400 ... 415 V) 7.5 kW | |
| (500 V) 7.5 kW | |
| (690 V) 7.5 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 25 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 25 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Voltage: | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 0.71 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 0.5 kA |
| Power Loss: | at Rated Operating Conditions per Pole 0.3 W |
| Pollution Degree: | 3 |
| Handle Type: | Handle and shaft not included |
| Switches Operating Mechanism: | Mechanism on Top of the Switch |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out |
| Bottom In - Top Out | |
| Operating Mode: | Front operated |
| Standards: | IEC 60947-3 |
| Special Functions: | No |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Cable Cross-Section: | Cu 0.75...10 mm² |
| Degree of Protection: | Front IP20 |
| Terminal Type: | Screw Terminals |
| Tightening Torque: | acc. IEC 60947-1 0.8 N·m |
| Mechanical Durability: | 20000 |
| Lock Type: | No |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SCC301183D0201 |
| |
| Declaration of Conformity - CE: | 1SCC301166D2703 |
| Environmental Information: | 1SCC301183D0201 |
| Instructions and Manuals: | 1SCC301052M0006 |
| RoHS Information: | 1SCC301183D0202 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 82 mm |
| Package Level 1 Depth / Length: | 103 mm |
| Package Level 1 Height: | 86 mm |
| Package Level 1 Gross Weight: | 0.1 kg |
| Package Level 1 EAN: | 6417019158389 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden): | 3171075 |
