General Information | |
| Extended Product Type: | MO495-90 |
| Product ID: | 1SAM560000R1009 |
| EAN: | 4013614265716 |
| Catalog Description: | MO495-90 Manual Motor Starter Magnetic Only |

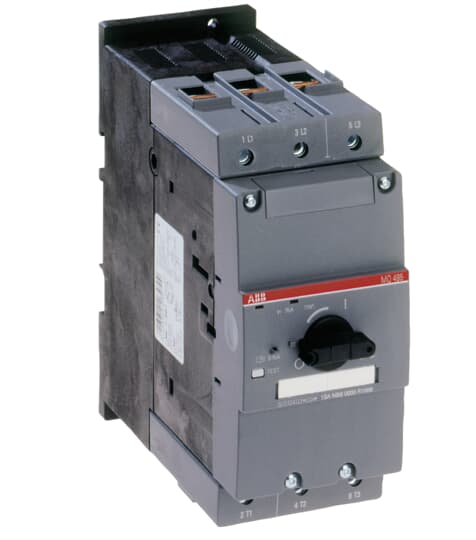

| Long Description: | The MO495-90 manual motor starter magnetic only is a 55 mm width device with a rated operational current of Ie = 90.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits. The manual motor starter magnetic only offers a rated service short-circuit breaking capacity Ics = 25 kA at 400 VAC. Further features are the build-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter magnetic only is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases and shunt trips are available as accessory. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100173C0201 |
| Instructions and Manuals: | 1SAM507001R1001 |
| |
| Product Net Width: | 70 mm |
| Product Net Height: | 165 mm |
| Product Net Depth / Length: | 174 mm |
| Product Net Weight: | 2.269 kg |
| |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (230 V AC) 100 kA |
| (400 V AC) 25 kA | |
| (440 V AC) 20 kA | |
| (500 V AC) 4 kA | |
| (690 V AC) 3 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (230 V AC) 100 kA |
| (400 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 8 kA | |
| (690 V AC) 5 kA | |
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 1170 A |
| Setting Range: | None |
| Rated Operational Power AC-3 (Pe): | (400 V) Three Phase 45 kW |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Main Circuit 450 V DC | |
| Rated Operational Current (Ie): | 90 A |
| Rated Operational Current AC-3 (Ie): | 90 A |
| Rated Frequency (f): | Main Circuit 50 Hz |
| Main Circuit 60 Hz | |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Power Loss: | at Rated Operating Conditions per Pole 10 W |
| Number of Poles: | 3 |
| Conventional Free-air Thermal Current (Ith): | Main Circuit 90 A |
| Degree of Protection: | Housing IP20 |
| Main Circuit Terminals IP00 | |
| Pollution Degree: | 3 |
| Electrical Durability: | 25000 cycle |
| Mechanical Durability: | 50000 cycle |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1x 2.5 ... 50 mm² |
| Flexible with Ferrule 2x 2.5 ... 35 mm² | |
| Solid 1/2x 2.5 ... 16 mm² | |
| Stranded 1x 10 ... 70 mm² | |
| Stranded 2x 10 ... 50 mm² | |
| Tightening Torque: | Main Circuit 4 ... 6 N·m |
| Wire Stripping Length: | Main Circuit 17 mm |
| Recommended Screw Driver: | Hexagon 4 |
| Mounting Position: | Position 1 to 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Actuator Type: | Rotary Handle |
| Contact Position Indication: | ON / OFF / TRIP |
| Standards: | CSA 22.2 No. 14 |
| IEC/EN 60947-1 | |
| IEC/EN 60947-2 | |
| IEC/EN 60947-4-1 | |
| UL 508 | |
| Remarks: | For overload protection of the motors, an appropriate thermal or electronic overload relays must be used |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 90 A |
| Horsepower Rating UL/CSA: | (200 V AC) Three Phase 30 Hp |
| (208 V AC) Three Phase 30 Hp | |
| (220 ... 240 V AC) Three Phase 30 Hp | |
| (440 ... 480 V AC) Three Phase 75 Hp | |
| (550 ... 600 V AC) Three Phase 100 Hp | |
| General Use Rating UL/CSA: | (600 V AC) 90 A |
| Connecting Capacity Main Circuit UL/CSA: | Flexible 1x 10-2/0 AWG |
| Flexible 1/2x 10-1/0 AWG | |
| Stranded 1x 10-2/0 AWG | |
| Stranded 1/2x 10-1/0 AWG | |
| Tightening Torque UL/CSA: | Main Circuit 35 ... 53 in·lb |
| |
| Ambient Air Temperature: | Operation -20 ... +70 °C |
| Storage -50 ... +80 °C | |
| Ambient Air Temperature Compensation: | No |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 25g |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| cUL Certificate: | 1SAA937000-1701 |
| Declaration of Conformity - CE: | 1SAD938505-0051 |
| Declaration of Conformity - UKCA: | 1SAD938500-1051 |
| DNV Certificate: | 1SAA937000-0301 |
| EAC Certificate: | 1SAA937001-2703 |
| GOST Certificate: | 1SAA963001-2702 |
| Instructions and Manuals: | 1SAM507001R1001 |
| RMRS Certificate: | 1SAA918000-0704 |
| RoHS Information: | 1SAD938505-0051 |
| UL Certificate: | UL_E167205 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 76.5 mm |
| Package Level 1 Depth / Length: | 190 mm |
| Package Level 1 Height: | 171 mm |
| Package Level 1 Gross Weight: | 2.3 kg |
| Package Level 1 EAN: | 4013614265716 |
| |
| Object Classification Code: | F |
| ETIM 4: | EC000074 - Motor protective circuit-breaker |
| ETIM 5: | EC000074 - Motor protective circuit-breaker |
| ETIM 6: | EC000074 - Motor protection circuit-breaker |
| ETIM 7: | EC000074 - Motor protection circuit-breaker |
| eClass: | V11.0 : 27370401 |
| UNSPSC: | 39121521 |
| IDEA Granular Category Code (IGCC): | 4845 >> 3 Pole Motor Circuit Protector Circuit Breakers |
