Article: OL40U3PB
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OL40U3PB |
| Product ID: | 1SCA022761R1110 |
| EAN: | 4034656525781 |

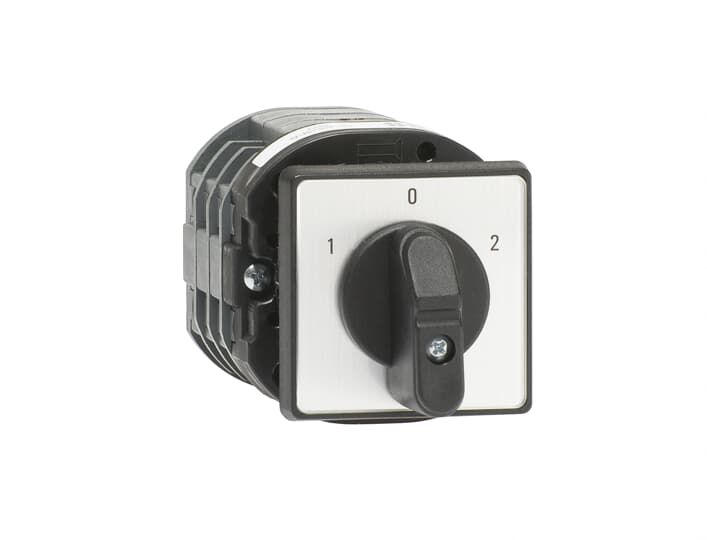

| Catalog Description: | OL40U3PB Cam switch |
| Long Description: | With 0-position, step angle 60°, door mounted, snap-on mounted handle |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Last Ordering Date: | 2020-09-30 All Countries |
| Country of Origin: | Germany (DE) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC302003C0201 |
| Instructions and Manuals: | 1SCC302004M0203 |
| |
| Product Net Width: | 51 mm |
| Product Net Height: | 56 mm |
| Product Net Depth / Length: | 111 mm |
| Product Net Weight: | 0.33 kg |
| |
| Rated Operational Current AC-22A (Ie): | (500 V) 40 A |
| (690 V) 40 A | |
| Rated Operational Current DC-21B (Ie): | (440 V) 40 A |
| (600 V) 25 A | |
| Rated Operational Power AC-23A (Pe): | (500 V) 15 kW |
| (690 V) 15 kW | |
| (415 V) 15 kW | |
| (220 ... 240 V) 7.5 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 45 A |
| Rated Continuous Thermal Current: | 45 A |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Rated Operational Voltage: | 690 V |
| Rated Short-time Withstand Current (Icw): | for 3 s 0.36 kA |
| Power Loss: | 2.9 W |
| Pollution Degree: | 3 |
| Handle Type: | Basic handle |
| Special Functions: | Change-over switch: With 0-position: 12 o'clock, step angle 60°, front plate 1-0-2 |
| Color: | Black |
| Mounting Type: | Snap-on door mounting |
| Number of Contacts: | 6 |
| Number of Poles: | 3 |
| Enclosure Type: | Not enclosed |
| Terminal Type: | Screw Terminals |
| Technical UL/CSA | |
| Ampere Rating UL/CSA: | 600 V AC 40 A |
| |
| Declaration of Conformity - CE: | 1SCC302001D0204 |
| Instructions and Manuals: | 1SCC302004M0203 |
| RoHS Information: | 1SCC302004D0201 |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Depth / Length: | 250 mm |
| Package Level 1 Height: | 110 mm |
| Package Level 1 Gross Weight: | 0.33 kg |
| Package Level 1 EAN: | 4034656525781 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC002611 - Control switch |
| ETIM 6: | EC002611 - Control switch |
| ETIM 7: | EC002611 - Control switch |
| ETIM 8: | EC002611 - Control switch |
| UNSPSC: | 39122217 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
