Article: MPR16 Plastic
Article: MPR16 Plastic

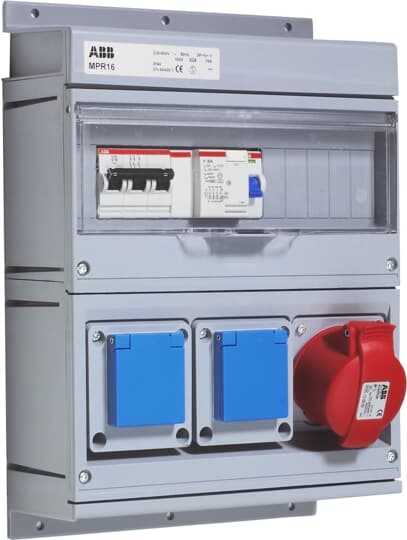

Modular Combi Plastic, 1x3P+N+E 16A, 2x10/16A Schuko(MCB 203-C16, RCD F204 A-25/0,03), 250x360x160, IP44
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MPR16 Plastic |
| Product ID: | 2CMA168997R1000 |
| EAN: | 7392696689977 |
| Catalog Description: | Modular Combi Plastic, 1x3P+N+E 16A, 2x10/16A Schuko(MCB 203-C16, RCD F204 A-25/0,03), 250x360x160, IP44 |
| Long Description: | Modular Combi Plastic, 16A, 1x3P+N+E 16A, 2x10/16A (MCB 203-C16, RCD F204 A-25/0,03), IP44, Cable entry, 4 knock-outs at the top, 2xØ40mm and 2xØ25mm, Three at the bottom Ø47mm |
| |
| E-Number (Sweden): | E2466345 |
| E-Number (Finland): | 3405154 |
| E-Number (Norway): | 2466345 |
| EAN: | 7392696689977 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 250 mm |
| Product Net Height: | 300 mm |
| Product Net Weight: | 3 kg |
| |
| Package Level 1 Width: | 210 mm |
| Package Level 1 Depth / Length: | 270 mm |
| Package Level 1 Height: | 490 mm |
| Package Level 1 Gross Weight: | 3.32 kg |
| Package Level 1 EAN: | 7392696689977 |
| Package Level 1 Units: | box 1 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 617.6 kg |
| Package Level 2 EAN: | 7392696077682 |
| Package Level 2 Units: | pallet (lift) 180 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0004 |
| Environmental Information: | 2CMC000057M0000 |
| RoHS Information: | 2CMC700005D0004 |
| SEMKO Certificate: | 2CHC660099X0201 |
| REACH Declaration: | 2CMC700005D0004 |
| |
| Additional Information: | Cable entry, 4 knock-outs at the top, 2xØ40mm and 2xØ25mm, Three at the bottom Ø47mm |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 16 mm² |
| Cable Entry Position: | Cable entry, 4 knock-outs at the top, 2xØ40mm and 2xØ25mm, Three at the bottom Ø47mm |
| Cable Length: | 0 m |
| Color: | Grey |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP44 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Combination box |
| Housing Material: | Thermoplastic (PBT) |
| Invoice Description: | Ind. P&S#MPR16 |
| Mounting Type: | Wall mounting |
| Number of Poles: | 5 |
| Number of RCDs 30mA: | 1 |
| Number of RCDs: | 1 |
| Number of Schuko Outlets: | 2 |
| Order Multiple: | 1 piece |
| Product Main Type: | MPR |
| Product Name: | Modular Combi |
| Rated Current (In): | 16 A |
| Rated Residual Current: | 30 mA |
| Rated Voltage (Ur): | 346 ... 415 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 61439-1 |
| IEC 61439-2 | |
| Sub-Function: | Cable entry, 4 knock-outs at the top, 2xØ40mm and 2xØ25mm, Three at the bottom Ø47mm |
| Suitable For: | MPR16 Modular Combi Plastic |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC711001M0201 |
| Installation Manual: | 2CMC000026M0001 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440501 |
| UNSPSC: | 39121406 |
