Article: MPR32/1
Article: MPR32/1

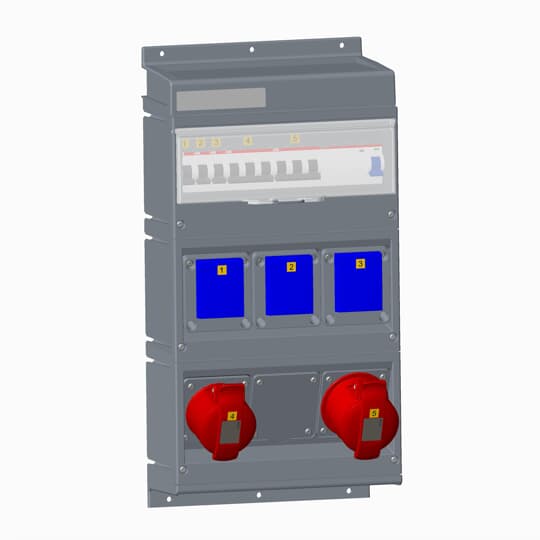

Modular Combi Plastic, 1x16A 3P+N+E, 1x32A 3P+N+E, 250x430x160, 3x2P Schuko outlet 10/16A, MCB+RCD, IP44
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MPR32/1 |
| Product ID: | 2CMA106211R1000 |
| EAN: | 7392696062114 |
| Catalog Description: | Modular Combi Plastic, 1x16A 3P+N+E, 1x32A 3P+N+E, 250x430x160, 3x2P Schuko outlet 10/16A, MCB+RCD, IP44 |
| Long Description: | Modular Combi Plastic, 1x16A 3P+N+E, 1x32A 3P+N+E, 250x430x160, 3x1P+E Schuko outlet 10/16A, IP44, RCD F204 A-63/0,03, 3xMCB S201-C16, 1xMCB S203-C16, 1xMCB S203-C32, Cable entry, 4 knock-outs at the top, 2xØ40,5mm and 2xØ25,5mm, Three at the bottom 2xØ40,5mm, 1xØ47,5mm |
| |
| E-Number (Sweden): | E2466474 |
| EAN: | 7392696062114 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 250 mm |
| Product Net Height: | 430 mm |
| Product Net Weight: | 5.0 kg |
| |
| Package Level 1 Width: | 210 mm |
| Package Level 1 Depth / Length: | 270 mm |
| Package Level 1 Height: | 490 mm |
| Package Level 1 Gross Weight: | 5.320 kg |
| Package Level 1 EAN: | 7392696062114 |
| Package Level 1 Units: | box 1 piece |
| |
| Declaration of Conformity - CE: | 2CMC700005D0004 |
| Environmental Information: | 2CMC000057M0000 |
| SEMKO Certificate: | 2CHC660099X0201 |
| REACH Declaration: | 2CMC700005D0004 |
| |
| Additional Information: | Cable entry, 4 knock-outs at the top, 2xØ40,5mm and 2xØ25,5mm, Three at the bottom 2xØ40,5mm, 1xØ47,5mm |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 16 mm² |
| Cable Entry Position: | Cable entry, 4 knock-outs at the top, 2xØ40,5mm and 2xØ25,5mm, Three at the bottom 2xØ40,5mm, 1xØ47,5mm |
| Cable Length: | 0 m |
| Color: | Grey |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP44 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Modular Combi |
| Housing Material: | Thermoplastic (PBT) |
| Invoice Description: | Ind. P&S#MPR32/1 |
| Mounting Holes: | 200x472 |
| Mounting Type: | Wall mounting |
| Number of RCDs 30mA: | 1 |
| Order Multiple: | 1 piece |
| Product Main Type: | MPR |
| Product Name: | Modular Combi |
| Rated Current (In): | 32 A |
| Rated Residual Current: | 30 mA |
| Rated Voltage (Ur): | 346 ... 415 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 61439-1 |
| IEC 61439-2 | |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC000026M0001 |
| Installation Manual: | 2CMC000026M0001 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27440501 |
| UNSPSC: | 39120000 |
| |
| Wiring Diagram: | 9AKK107680A1924 |
