Article: M12-3H
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | M12-3H |
| Product ID: | 2TLA020055R0800 |
| EAN: | 7350024483185 |
| Catalog Description: | M12-3H Connection accessory |

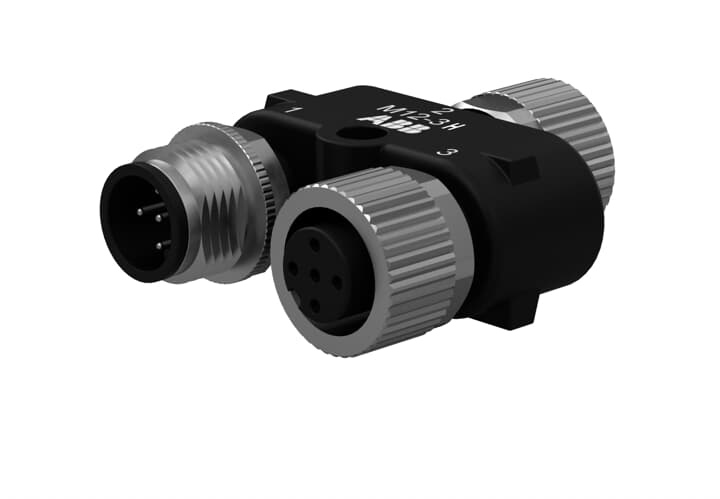

| Long Description: | M12 Y-connector for series connection of Adam OSSD M12-8 safety sensor with M12-5 cables.One M12-8 female connector (#2) for connection of the safety sensor one M12-5 male connector (#1) for connecting +24VDC, 0V and the incoming OSSD signals and one M12-5 female connector (#3) for continuation of the circuit towards another safety device or the safety control device. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85444290 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Wiring Diagram: | 2TLC172331D0201 |
| Marketing Video: | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| |
| Product Net Depth / Length: | 20 mm |
| Product Net Height: | 40 mm |
| Product Net Width: | 35 mm |
| Product Net Weight: | 0.02 kg |
| |
| Degree of Protection: | IP67 |
| Rated Control Supply Voltage (Us): | 24 V |
| Suitable For: | Adam OSSD-Info M12-8 |
| Adam OSSD-Reset M12-8 | |
| |
| Declaration of Conformity - CE: | No declaration needed |
| |
| Object Classification Code: | X |
| ETIM 4: | EC002638 - Cable connector |
| ETIM 5: | EC002638 - Cable connector |
| ETIM 6: | EC002925 - Sensor-actuator adapting connector |
| ETIM 7: | EC002925 - Sensor actuator adapter |
| eClass: | V11.0 : 27060313 |
| UNSPSC: | 39121438 |
