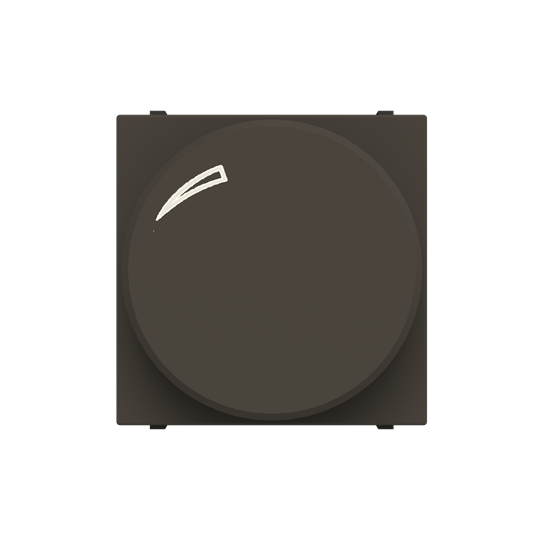

N2260.9 AN 1-10V rotary dimmer - 2M - Anthracite
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2260.9 AN |
| Product ID: | 2CLA226090N1801 |
| EAN: | 8427238078397 |
| Catalog Description: | N2260.9 AN 1-10V rotary dimmer - 2M - Anthracite |
| Long Description: | Color: Anthracite.Rated voltage: 127 - 230 Vac / 50 - 60 Hz Dimmable electronic ballast/driver with 1-10V control input.Max. power: - 230 Vac: 700 VA - 127 Vac: 350 VAMax. 6 ballasts per device Indicator LED lamp includedSize: 2 modules. |
| |
| Product Name: | 1-10V rotary dimmer - 2M - Anthracite |
| Rated Voltage (Ur): | 230...230 V |
| Frequency (f): | 50...50 Hz |
| Power Watt: | 700...700 V·A |
| Actuator Type: | Turn button |
| Connection Type: | Screw |
| Load Type: | Electronic ballast 1-10 V |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Snapper Mounting |
| Surface Finishing: | Surface protection: Decor |
| Surface finishing: Matt | |
| Material: | Material quality: Thermoplastic |
| Material: Plastic | |
| Color: | Anthracite |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 0.069 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.076 m |
| Package Level 1 Height: | 0.064 m |
| Package Level 1 Depth / Length: | 0.076 m |
| Package Level 1 Gross Weight: | 0.069 kg |
| Package Level 1 EAN: | 8427238078397 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106930A5901 |
| Instructions and Manuals: | 2CLX226099N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX226099N1001 |
| |
| ETIM 6: | EC000025 - Dimmer |
| ETIM 7: | EC000025 - Dimmer |
| ETIM 8: | EC000025 - Dimmer |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369099 |
| UNSPSC: | 39122206 |
