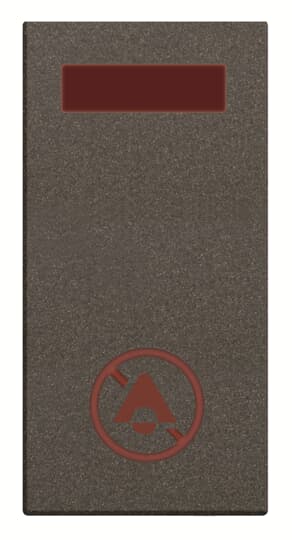

N2180.4 AN LED DND signaling light - 1M - Anthracite
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2180.4 AN |
| Product ID: | 2CLA218040N1801 |
| EAN: | 8427238093857 |
| Catalog Description: | N2180.4 AN LED DND signaling light - 1M - Anthracite |
| Long Description: | Color: Anthracite.Rated voltage: 127-230 Vac / 50-60 HzLamp: white LEDLuminous flux: > 2 lumen at 1 meterRed diffuserDo Not Disturb (DND) symbolTo be controlled with N2244.5 DND/MUR 2-gang interlocked switchSize: 1 module. |
| |
| Product Name: | LED DND signaling light - 1M - Anthracite |
| Rated Voltage (Ur): | 230 V |
| Lamp Type: | LED not exchangeable |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Engage (Snap) |
| Surface Finishing: | Surface protection: Decor |
| Surface finishing: Matt | |
| Material: | Plastic |
| Color: | Anthracite |
| Lamp Color: | White |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 22 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 0.27 kg |
| Built-In Depth (t2): | 40 mm |
| |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Width: | 0.081 m |
| Package Level 1 Height: | 0.078 m |
| Package Level 1 Depth / Length: | 0.131 m |
| Package Level 1 Gross Weight: | 1.35 kg |
| Package Level 1 EAN: | 8427238093857 |
| |
| Minimum Order Quantity: | 5 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106930A5902 |
| Instructions and Manuals: | 2CLX210109N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX210109N1001 |
| |
| ETIM 6: | EC000064 - Information light signal for domestic switching devices |
| ETIM 7: | EC000064 - Information light signal for domestic switching devices |
| ETIM 8: | EC000064 - Information light signal for domestic switching devices |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
| UNSPSC: | 39121534 |
