Article: MS2
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MS2 |
| Product ID: | 2CDG220022R0011 |
| EAN: | 4016779067331 |

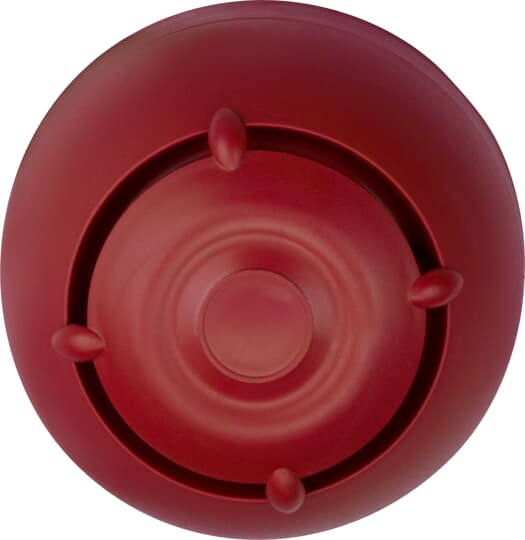

| Catalog Description: | MS2 Indoor siren 24V, red, EN 54, Part 3 |
| Long Description: | The MS2 indoor siren is approved for fire alarm control panels in accordance with EN54 and VdS. It has a high sound level and low current consumption.It is possible to choose between 32 modes. A diode is integrated into the siren for the cable monitoring function in ABB fire alarm control panels. |
| |
| Product Name: | Signalling Devices |
| Auxiliary Voltage AC/DC: | 24 V DC |
| Power Loss: | 1.232 W |
| Number of Outputs: | 0 |
| Mounting Type: | Surface Mounted |
| Manual Operation: | No |
| Color: | Grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 63 mm |
| Product Net Height: | 63 mm |
| Product Net Depth / Length: | 63 mm |
| Product Net Weight: | 0.2 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 98 mm |
| Package Level 1 Height: | 112 mm |
| Package Level 1 Depth / Length: | 98 mm |
| Package Level 1 Gross Weight: | 0.24 kg |
| Package Level 1 EAN: | 4016779067331 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85311030 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK513088D2701 |
| Instructions and Manuals: | 2CDG941219P0001 |
| RoHS Information: | 2CDK513088D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC513084D0211 |
| Instructions and Manuals: | 2CDG941219P0001 |
| |
| ETIM 6: | EC000195 - Optical/acoustic signal device |
| ETIM 7: | EC000195 - Optical/acoustic signal device |
| ETIM 8: | EC000195 - Optical/acoustic signal device |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8531 10 30 |
| eClass: | V7.0 : 27143290 |
