General Information | |
| Extended Product Type: | OT160GT30P |
| Product ID: | 1SCA135143R1001 |
| EAN: | 6417019638744 |
| Catalog Description: | OT160GT30P SWITCH-DISCONNECTOR |

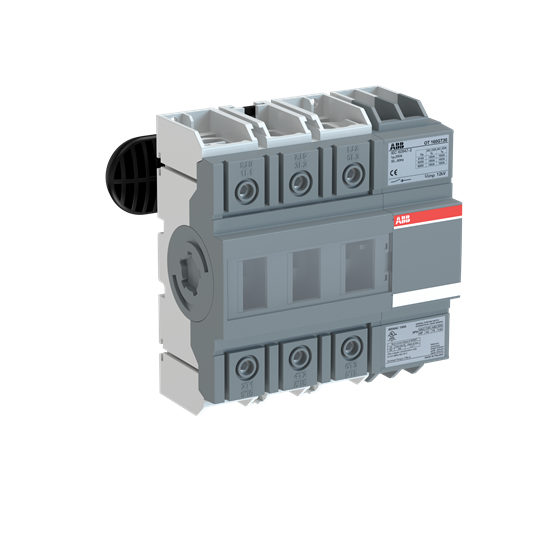

| Long Description: | 3-pole, front operated, door mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC301018B0201 |
| Instructions and Manuals: | 1SCC301089M0204 |
| |
| Product Net Width: | 123 mm |
| Product Net Height: | 130 mm |
| Product Net Depth / Length: | 75 mm |
| Product Net Weight: | 0.9 kg |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe): | (220 ... 240 V) 45 kW |
| (400 ... 415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 160 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 160 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 12 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 4 kA |
| Rated Conditional Short-Circuit Current (Inc): | (500 V) 30 kiloampere rms |
| (690 V) 24 kiloampere rms | |
| Power Loss: | at Rated Operating Conditions per Pole 6.5 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft included |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| 30 (Right Side) | |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out |
| Bottom In - Top Out | |
| Operating Mode: | Front and side operated |
| Standards: | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Special Functions: | No |
| Mounting Type: | Door mounting |
| Number of Poles: | 3 |
| Cable Cross-Section: | Cu 10...70 mm² |
| Degree of Protection: | Front IP20 |
| Terminal Type: | Screw Terminals |
| Tightening Torque: | acc. IEC 60947-1 6 N·m |
| Mechanical Durability: | 20000 |
| Lock Type: | Yes |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | 600 V |
| Horsepower Rating UL/CSA: | (240 V AC) Single Phase 20 Hp |
| (440 ... 480 V AC) Single Phase 30 Hp | |
| Ampere Rating UL/CSA: | 125 A |
| Tightening Torque UL/CSA: | 53 in·lb |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SCC301210D2701 |
| DNV GL Certificate: | 1SCC301174D0204 |
| Instructions and Manuals: | 1SCC301089M0204 |
| UL Certificate: | cULus certificate OT160G |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 160 mm |
| 6.3 in | |
| Package Level 1 Depth / Length: | 244 mm |
| 9.6 in | |
| Package Level 1 Height: | 96 mm |
| 3.8 in | |
| Package Level 1 Gross Weight: | 1 kg |
| 2.3 lb | |
| Package Level 1 EAN: | 6417019638744 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
