Article: MRSS/B
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MRSS/B |
| Product ID: | GHV9210018V0090 |
| EAN: | 4013232742224 |
| Catalog Description: | MRSS/B Magnet Reedcontact, brown, VdS C |

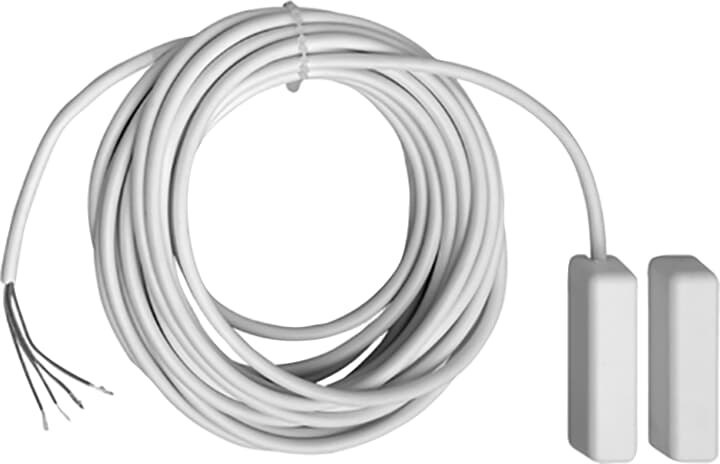

| Long Description: | For opening surveillance of windows and doors, complete for bolting or drilling. with different magnet protection. Contents: 1 magnet, 1 reed contact with 4.0 m connection cable LIYY 4 x 0.14 mm², 2 housings, 2 spacer plates, 2 flanges and 4 antimagnetic fixing screws. |
| |
| Product Name: | Conventional |
| Voltage Range: | 12 ... 30 V DC |
| Maximum Switching Current: | 0.1 mA |
| Power Loss: | 0 W |
| Number of Outputs: | 0 |
| Mounting Type: | Built-in Installation |
| Built-on | |
| Manual Operation: | No |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP68 |
| |
| Product Net Width: | 43 mm |
| Product Net Height: | 12 mm |
| Product Net Depth / Length: | 15 mm |
| Product Net Weight: | 0.088 kg |
| |
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 20 mm |
| Package Level 1 Height: | 87 mm |
| Package Level 1 Depth / Length: | 110 mm |
| Package Level 1 Gross Weight: | 0.11 kg |
| Package Level 1 EAN: | 4013232742224 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364110 |
| E-Number (Switzerland): | 961810513 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CDG941121P0001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDG941121P0001 |
| Instructions and Manuals: | 2CDG941121P0001 |
| |
| ETIM 6: | EC001761 - Opening detector for intrusion detection system |
| ETIM 7: | EC001761 - Opening detector for intrusion detection system |
| ETIM 8: | EC001761 - Opening detector for intrusion detection system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8536 41 10 |
| eClass: | V7.0 : 27399209 |
| Object Classification Code: | A |
