General Information | |
| Extended Product Type: | MSHD-LY |
| Product ID: | 1SAM201920R1002 |
| EAN: | 4013614441837 |
| Catalog Description: | MSHD-LY Handles |

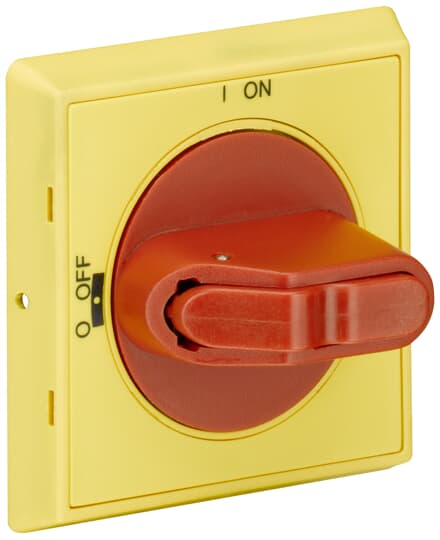

| Long Description: | MSHD-LY Handle, IP64, red/yellow, 3 times lockable, defeatable, 0-I Suitable for Manual Motor Starter |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100173C0201 |
| Instructions and Manuals: | 2CDC131033M6801 |
| |
| Product Net Width: | 65.6 mm |
| Product Net Height: | 65.5 mm |
| Product Net Depth / Length: | 57.9 mm |
| Product Net Weight: | 0.065 kg |
| |
| Contact Position Indication: | ON / OFF |
| Actuator Type: | Rotary Handle |
| Shaft Diameter: | 6x6 mm |
| Color: | Yellow / Red |
| Degree of Protection: | IP64 |
| Tightening Torque: | 0.12 N·m |
| Product Name: | Handles |
| Suitable For: | MS116 |
| MS132 | |
| MO132 | |
| MS450 | |
| MS451 | |
| MS495 | |
| MS496 | |
| MS497 | |
| MO450 | |
| MO495 | |
| MO496 | |
| Suitable for Product Class: | Manual Motor Starter |
| Accessory Group: | Mechanical |
| Accessory Type: | Handles |
| Technical UL/CSA | |
| Enclosure Type UL/CSA: | 1 |
| 12 | |
| 3R | |
| Tightening Torque UL/CSA: | 1.06 in·lb |
| |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| |
| Declaration of Conformity - CE: | 1SAD938504-0196 |
| 1SAD938506-0197 | |
| 1SAD938508-0188 | |
| 1SAD938509-0183 | |
| 1SAD938516-0125 | |
| Declaration of Conformity - UKCA: | 1SAD938500-1060;1SAD938500-1003;1SAD938500-1037 |
| Instructions and Manuals: | 2CDC131033M6801 |
| RoHS Information: | 1SAD938504-0196 |
| 1SAD938506-0197 | |
| 1SAD938508-0188 | |
| 1SAD938509-0183 | |
| 1SAD938516-0125 | |
| |
| Package Level 1 Width: | 130 mm |
| Package Level 1 Depth / Length: | 70 mm |
| Package Level 1 Height: | 170 mm |
| Package Level 1 Gross Weight: | 0.1 kg |
| Package Level 1 EAN: | 4013614441837 |
| Package Level 1 Units: | 1 piece |
| |
| Object Classification Code: | X |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC000229 - Handle for power circuit breaker |
| ETIM 6: | EC000229 - Handle for power circuit breaker |
| ETIM 7: | EC000229 - Handle for power circuit breaker |
| eClass: | V11.0 : 27370414 |
| UNSPSC: | 39121521 |
| IDEA Granular Category Code (IGCC): | 3038 >> Handles or knobs |
| E-Number (Finland): | 3705865 |
| E-Number (Sweden): | 3112089 |
