General Information | |
| Extended Product Type: | OS250D22LR |
| Product ID: | 1SCA022853R0230 |
| EAN: | 6417019302362 |

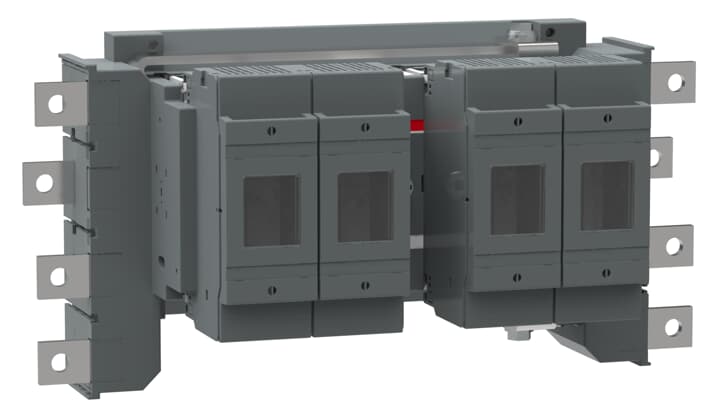

| Catalog Description: | OS250D22LR SPECIAL CONNECTED SWITCH FUSE |
| Long Description: | Switch Fuses,Front Operated,4-pole,22 (Between the Poles),DIN,0,1,Handle and shaft not included,Switched - Fusible Pole |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC311013C0201 |
| Instructions and Manuals: | 1SCC311019M0006 |
| |
| Product Net Width: | 350 mm |
| Product Net Height: | 200 mm |
| Product Net Depth / Length: | 218 mm |
| Product Net Weight: | 8.5 kg |
| |
| Rated Operational Current AC-21A (Ie): | (500 V) 250 A |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe): | (220 ... 240 V) 75 kW |
| (400 V) 140 kW | |
| (415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 250 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 315 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Rated Short-time Withstand Current (Icw): | for 1 s 8 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc): | (690 V) 80 kA |
| Power Loss: | at Rated Operating Conditions per Pole 23 W |
| Pollution Degree: | 3 |
| Handle Type: | Handle and shaft not included |
| Fourth Pole Type: | Switched - Fusible Pole |
| Switches Operating Mechanism: | 22 (Between the Poles) |
| Position of Line Terminals: | Left In - Right Out |
| Fuse Size: | 0,1 |
| Fuse System: | DIN |
| Operating Mode: | Front Operated |
| Standards: | IEC 60947-3 |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Terminal Type: | Lug terminals |
| Terminal Width: | 25 mm |
| Tightening Torque: | 30 ... 44 N·m |
| Fuse Type: | DIN |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| CCC Certificate: | CCC OS200-250_LR 2016 |
| Declaration of Conformity - CE: | 1SCC311120D2702 |
| DNV GL Certificate: | 1SCC311132D0202 |
| EAC Certificate: | EAC OT_OTDC_OTL_OTP_OTR_OTU_OTE_OETL_OESA_OESC_OTM_OS_OSM_.pdf |
| Instructions and Manuals: | 1SCC311019M0006 |
| RoHS Information: | 1SCC311120D2702 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 265 mm |
| Package Level 1 Depth / Length: | 445 mm |
| Package Level 1 Height: | 295 mm |
| Package Level 1 Gross Weight: | 8.8 kg |
| Package Level 1 EAN: | 6417019302362 |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC001040 - Fuse switch disconnector |
| ETIM 5: | EC001040 - Fuse switch disconnector |
| ETIM 6: | EC001040 - Fuse switch disconnector |
| ETIM 7: | EC001040 - Fuse switch disconnector |
| ETIM 8: | EC001040 - Fuse switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
