Article: MS325/25-S
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MS325/25-S |
| Product ID: | 2CCF004169R0001 |
| EAN: | 7612270029419 |

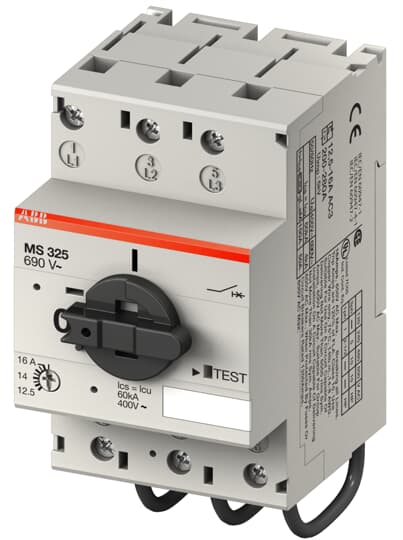

| Catalog Description: | MS325/25-S Motor Starter |
| Long Description: | The MS325 is a circuit- breaker with a motor protection characteristik. It is intendend above all for industrial applications (MCC) or in distribution systems without a back up fuse. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365000 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107492A6192 |
| Instructions and Manuals: | No document needed |
| Dimension Diagram: | 9AKK107492A6192 |
| |
| Product Net Width: | 94.5 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 54 mm |
| Product Net Weight: | 340 g |
| |
| Rated Operational Power AC-3 (Pe): | (230 V) 2 kW |
| Rated Operational Voltage: | 230...400 V |
| Rated Operational Current (Ie): | 20 ... 25 A |
| Power Loss: | 1.91 W |
| Number of Poles: | 3 |
| Degree of Protection: | IP20 |
| Standards: | IEC60947-2 |
| IEC 60947-4-1 | |
| |
| Ambient Air Temperature Compensation: | Yes |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| |
| Declaration of Conformity - CE: | 1SAD938518-0003 |
| Environmental Information: | 2CCC404013D0201 |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 2CCC413008D0206_RoHS |
| |
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 54 mm |
| Package Level 1 Depth / Length: | 58 mm |
| Package Level 1 Height: | 80 mm |
| Package Level 1 Gross Weight: | 362 g |
| Package Level 1 EAN: | 7612270029419 |
| |
| Object Classification Code: | FC |
| ETIM 4: | EC000074 - Motor protective circuit-breaker |
| ETIM 5: | EC000074 - Motor protective circuit-breaker |
| ETIM 6: | EC000074 - Motor protection circuit-breaker |
| ETIM 7: | EC000074 - Motor protection circuit-breaker |
| E-Number (Switzerland): | 500400135 |
