Article: M12-3A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | M12-3A |
| Product ID: | 2TLA020055R0000 |
| EAN: | 7350024452259 |
| Catalog Description: | M12-3A Connection accessory |

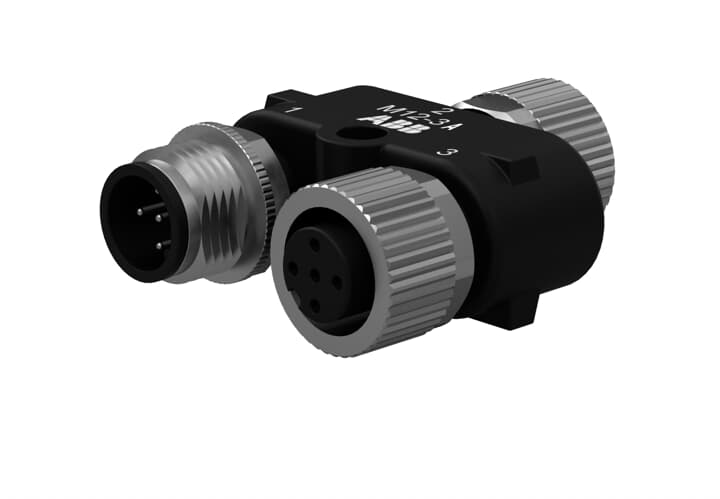

| Long Description: | M12 Y-connector for series connection of DYNlink devices such as Eden sensors, Smile Tina and Inca Tina emergency stop buttons, Spot single beam, and Tina adapters. One M12-5 female connector (#2) for connection of the safety device, one M12-5 male connector (#1) for connection of +24VDC, 0V and the incoming dynamic signal and one M12-5 female connector (#3) for continuation of the circuit towards another safety device or Vital/Pluto safety PLC. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8538909999 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Marketing Video: | 9AKK10103A4645 |
| 2TLC010018N0201 | |
| |
| Product Net Depth / Length: | 20 mm |
| Product Net Height: | 40 mm |
| Product Net Width: | 35 mm |
| Product Net Weight: | 0.02 kg |
| |
| Declaration of Conformity - CE: | No declaration needed |
| |
| Object Classification Code: | X |
| ETIM 4: | EC002638 - Cable connector |
| ETIM 5: | EC002638 - Cable connector |
| ETIM 6: | EC002925 - Sensor-actuator adapting connector |
| ETIM 7: | EC002925 - Sensor actuator adapter |
| eClass: | V11.0 : 27060313 |
| UNSPSC: | 39121438 |
| E-Number (Finland): | 2307358 |
| E-Number (Sweden): | 3861400 |
