Article: M12-3B
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | M12-3B |
| Product ID: | 2TLA020055R0100 |
| EAN: | 7350024452266 |
| Catalog Description: | M12-3B Connection accessory |

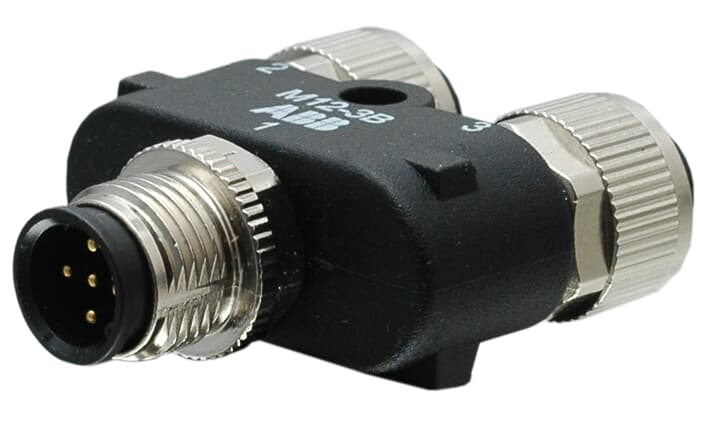

| Long Description: | M12 Y-connector for parallel connection of 2 DYNlink devices such as Eden sensors, Spot singel beams and Tina adapters. Two M12-5 female connectors (#2, #3) for connection of the safety devices and one M12-5 male connector (#1) for connection towards the DYNlink loop. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8538909999 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| |
| Product Net Depth / Length: | 20 mm |
| Product Net Height: | 40 mm |
| Product Net Width: | 35 mm |
| Product Net Weight: | 0.02 kg |
| |
| Degree of Protection: | IP67 |
| Rated Control Supply Voltage (Us): | 24 V |
| Suitable For: | Magne 3A |
| Magne 3B | |
| Adam DYN-Info M12-5 | |
| Adam DYN-Reset M12-5 | |
| |
| Declaration of Conformity - CE: | No declaration needed |
| |
| Object Classification Code: | X |
| ETIM 4: | EC002638 - Cable connector |
| ETIM 5: | EC002638 - Cable connector |
| ETIM 6: | EC002925 - Sensor-actuator adapting connector |
| ETIM 7: | EC002925 - Sensor actuator adapter |
| eClass: | V11.0 : 27060313 |
| UNSPSC: | 39121438 |
| E-Number (Finland): | 2307359 |
| E-Number (Sweden): | 3861402 |
