General Information | |
| Extended Product Type: | OS125GF04N1P |
| Product ID: | 1SCA115888R1001 |
| EAN: | 6417019481562 |

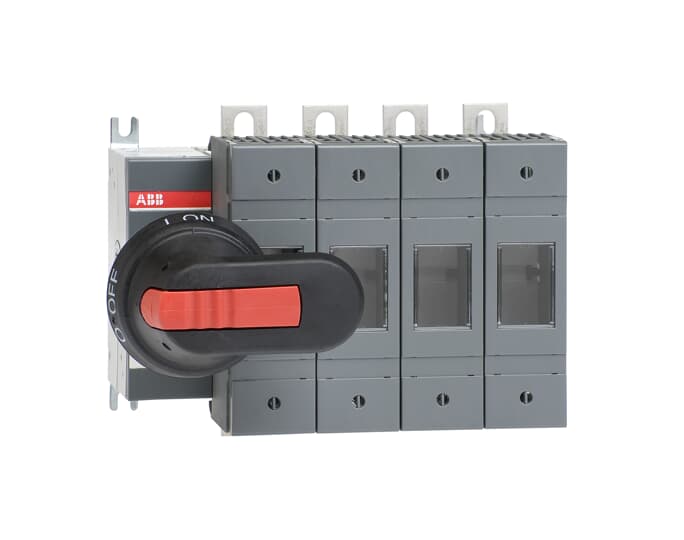

| Catalog Description: | OS125GF04N1P SWITCH FUSE |
| Long Description: | Switch Fuses,Front Operated,4-pole,04 (Left Side),NFC,22x58,Handle and shaft included,Switched - With Solid Link |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC311013C0201 |
| Instructions and Manuals: | 1SCC311037M0206 |
| |
| Product Net Width: | 182 mm |
| Product Net Height: | 140 mm |
| Product Net Depth / Length: | 130 mm |
| Product Net Weight: | 2.55 kg |
| 5.62 lb | |
| |
| Rated Operational Current AC-21A (Ie): | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Current AC-22A (Ie): | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Current AC-23A (Ie): | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Power AC-23A (Pe): | (220 ... 240 V) 37 kW |
| (400 V) 55 kW | |
| (415 V) 55 kW | |
| (500 V) 75 kW | |
| (690 V) 110 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 125 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 125 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Rated Short-time Withstand Current (Icw): | for 1 s 5 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc): | (690 V) 80 kA |
| Power Loss: | at Rated Operating Conditions per Pole 12 W |
| Pollution Degree: | 3 |
| Handle Type: | Pistol handle and shaft included |
| Fourth Pole Position: | Left Side |
| Fourth Pole Type: | Switched - With Solid Link |
| Switches Operating Mechanism: | 04 (Left Side) |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Fuse Size: | 22x58 |
| Fuse System: | NFC |
| Operating Mode: | Front Operated |
| Standards: | IEC 60947-3 |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Terminal Type: | Lug terminals |
| Terminal Width: | 20 mm |
| Tightening Torque: | 15 ... 22 N·m |
| Fuse Type: | NFC |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| CCC Certificate: | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE: | 1SCC311137D2703 |
| DNV GL Certificate: | 1SCC311125D0203 |
| EAC Certificate: | EAC OT_OTDC_OTL_OTP_OTR_OTU_OTE_OETL_OESA_OESC_OTM_OS_OSM_.pdf |
| Instructions and Manuals: | 1SCC311037M0206 |
| RoHS Information: | 1SCC311137D2703 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length: | 250 mm |
| 9.8 in | |
| Package Level 1 Height: | 155 mm |
| 6.1 in | |
| Package Level 1 Gross Weight: | 2.8 kg |
| 6.1 lb | |
| Package Level 1 EAN: | 6417019481562 |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC001040 - Fuse switch disconnector |
| ETIM 5: | EC001040 - Fuse switch disconnector |
| ETIM 6: | EC001040 - Fuse switch disconnector |
| ETIM 7: | EC001040 - Fuse switch disconnector |
| ETIM 8: | EC001040 - Fuse switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
