| Extended Product Type: | OS1250D02P |
| Product ID: | 1SCA114051R1001 |
| EAN: | 6417019465654 |

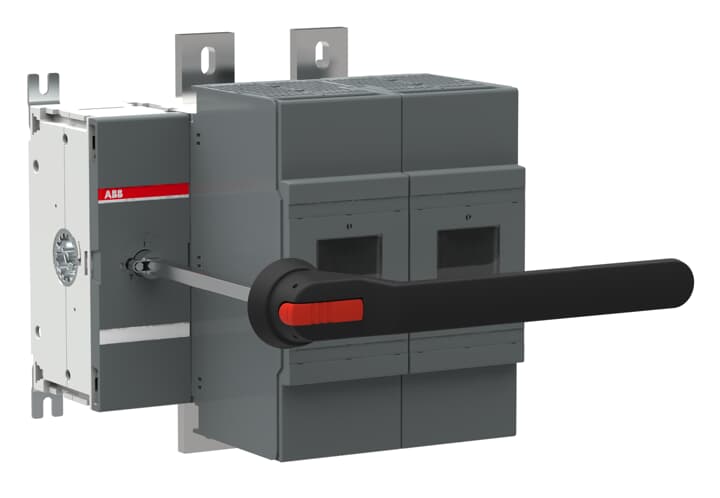

| Catalog Description: | OS1250D02P SWITCH FUSE |
| Long Description: | Switch Fuses,Front Operated,2-pole,02 (Left Side),DIN,4,Handle and shaft included, |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC311013C0201 |
| Instructions and Manuals: | 1SCC311022M0207 |
| |
| Product Net Weight: | 20 kg |
| 44.09 lb | |
| |
| Rated Operational Current AC-21B (Ie): | (500 V) 1250 A |
| (690 V) 1250 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 1250 A |
| Rated Operational Current AC-22B (Ie): | (500 V) 1250 A |
| (690 V) 1250 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 1000 A |
| Rated Operational Current AC-23B (Ie): | (500 V) 1000 A |
| (690 V) 1000 A | |
| Rated Operational Power AC-23A (Pe): | (220 ... 240 V) 315 kW |
| (400 V) 560 kW | |
| (415 V) 560 kW | |
| (500 V) 710 kW | |
| (690 V) 1000 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 1250 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 1250 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Rated Short-time Withstand Current (Icw): | for 1 s 40 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc): | (690 V) 80 kA |
| Power Loss: | at Rated Operating Conditions per Pole 110 W |
| Pollution Degree: | 3 |
| Handle Type: | Handle and shaft included |
| Switches Operating Mechanism: | 02 (Left Side) |
| Position of Line Terminals: | Top In - Bottom Out |
| Bottom In - Top Out | |
| Fuse Size: | 4 |
| Fuse System: | DIN |
| Operating Mode: | Front Operated |
| Standards: | IEC 60947-3 |
| Mounting Type: | Base mounting |
| Number of Poles: | 2 |
| Cable Cross-Section: | 2.5 ... 25 mm² |
| Terminal Type: | Lug terminals |
| Terminal Width: | 50 mm |
| Tightening Torque: | 50 ... 75 N·m |
| Fuse Type: | DIN |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| CCC Certificate: | CCC OS1200-1250 2015.pdf |
| Declaration of Conformity - CE: | 1SCC311127D2703 |
| Instructions and Manuals: | 1SCC311022M0207 |
| RoHS Information: | 1SCC311127D2703 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 384 mm |
| 15.12 in | |
| Package Level 1 Depth / Length: | 384 mm |
| 15.12 in | |
| Package Level 1 Height: | 385 mm |
| 15.16 in | |
| Package Level 1 Gross Weight: | 22.16 kg |
| 48.85 lb | |
| Package Level 1 EAN: | 6417019465654 |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC001040 - Fuse switch disconnector |
| ETIM 5: | EC001040 - Fuse switch disconnector |
| ETIM 6: | EC001040 - Fuse switch disconnector |
| ETIM 7: | EC001040 - Fuse switch disconnector |
| ETIM 8: | EC001040 - Fuse switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
