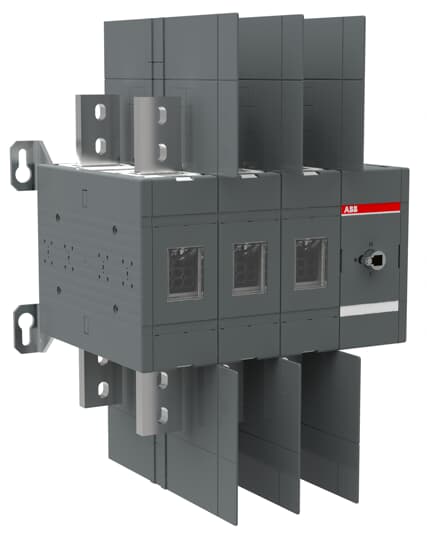

Article: OT800U30C
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT800U30C |
| Product ID: | 1SCA104048R1001 |
| EAN: | 6417019383842 |
| Catalog Description: | OT800U30C CHANGE-OVER SWITCH |
| Long Description: | Handle and shaft has to be ordered separately |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC303003C0201 |
| Instructions and Manuals: | 1SCC303008M0203 |
| |
| Product Net Width: | 400 mm |
| Product Net Height: | 376 mm |
| Product Net Depth / Length: | 335 mm |
| Product Net Weight: | 38.11 kg |
| 84.02 lb | |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| Rated Operational Current AC-31B (Ie): | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-33B (Ie): | (380 ... 415 V) 1000 A |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 1600 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Operational Voltage: | 1000 V |
| Rated Short-time Withstand Current (Icw): | for 1 s 50 kiloampere rms |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft not included |
| Switches Operating Mechanism: | Mechanism at the End of the Switch |
| 30 (Right Side) | |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode: | Front operated |
| Standards: | UL 98 / IEC60947-3 |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Degree of Protection: | Front IP20 |
| Mechanical Durability: | 3000 cycle |
| Transition Type: | Open |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA: | (acc. to UL 240 V) 250 Hp |
| (acc. to UL 480 V) 500 Hp | |
| (acc. to UL 600 V) 500 Hp | |
| Ampere Rating UL/CSA: | 800 A |
| |
| Environmental Information: | 1SCC303050D0201 |
| |
| Declaration of Conformity - CE: | 1SCC303014D0201 |
| Environmental Information: | 1SCC303050D0201 |
| Instructions and Manuals: | 1SCC303008M0203 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 394 mm |
| 15.51 in | |
| Package Level 1 Depth / Length: | 534 mm |
| 21.02 in | |
| Package Level 1 Height: | 368 mm |
| 14.49 in | |
| Package Level 1 Gross Weight: | 40.36 kg |
| 88.98 lb | |
| Package Level 1 EAN: | 6417019383842 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| UNSPSC: | 39122233 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
